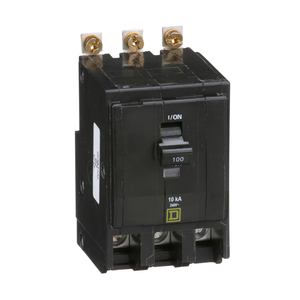

Schneider Electric QOB3100VH Miniature Circuit Breaker 240V 100A

(No reviews yet) Write a Review
SKU:
QOB3100VH
UPC:
785901054801
Condition:
New
Sustainable Offer Status:
Green Premium product
Awg Gauge:
AWG 4...AWG 2/0 copper or aluminium
Ambient Air Temperature For Operation:
40 °C
Depth:
74 mm
[Ue] Rated Operational Voltage:
120/240 V AC || 240 V AC || 120 V AC
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Line Rated Current:
100 A
Mounting Mode:
bolt-on
Mercury Free:
Yes
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Width:
57 mm
Circuit Breaker Type:
standard
Eu Rohs Directive:
Compliant with Exemptions
Range Of Product:
QO
Height:
89 mm
Electrical Connection:
box lugs
Poles Description:
3P
California Proposition 65:
WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Number Of Spaces Required:
3
Tightening Torque:
5.6-5.6 N.m
Circuit Breaker Application:
HACR rated
Product Or Component Type:
miniature circuit-breaker
Product Certifications:
UL Listed || CSA
Circularity Profile:
N/A
Halogen Content Performance:
Halogen free product
Breaking Capacity:
22 kA 120/240 V AC 50/60 Hz || 22 kA 240 V AC 50/60 Hz || 22 kA 120 V AC 50/60 Hz
Warranty:
18 months
Net Weight:
0.494 kg
Rohs Exemption Information:
Yes
Brochure:
View
Catalog:
View
Datasheet:
View
$679.32

Description

QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 100A at 120/240VAC. This unit provides 22kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
