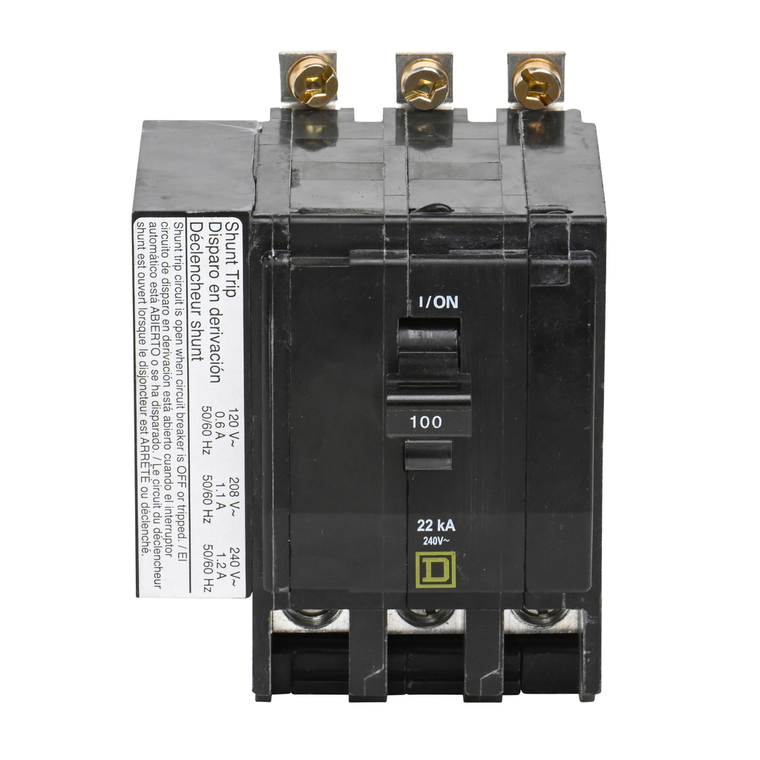

Schneider Electric QOB3100VH1021 Miniature Circuit Breaker 240V 100A

Schneider Electric QOB3100VH1021 Miniature Circuit Breaker 240V 100A

Schneider Electric
SKU:
QOB3100VH1021
|
UPC:
785901088752
Availability:
Contact us to confirm availability and lead times.
$818.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 100A at 120/240VAC. This unit provides 22kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes an AC shunt trip. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Additional Information
Sustainable Offer Status:
Green Premium product
Circuit Breaker Type:
standard
Depth:
74 mm
Product Or Component Type:
miniature circuit-breaker
Net Weight:
0.522 kg
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mounting Mode:
bolt-on
Circularity Profile:
N/A
Circuit Breaker Application:
HACR rated
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information:
Yes
Mercury Free:
Yes
Number Of Spaces Required:
4
Breaking Capacity:
22 kA 120/240 V AC 50/60 Hz || 22 kA 240 V AC 50/60 Hz || 22 kA 120 V AC 50/60 Hz
Electrical Connection:
box lugs
California Proposition 65:
WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Certifications:
UL Listed || CSA
Halogen Content Performance:
Halogen free product
Poles Description:
3P
Height:
89 mm
Awg Gauge:
AWG 4...AWG 2/0 copper or aluminium
[Ue] Rated Operational Voltage:
120/240 V AC || 240 V AC || 120 V AC
Accessory / Separate Part Type:
shunt trip 120/208/240 V AC
Ambient Air Temperature For Operation:
40 °C
Width:
76 mm
Tightening Torque:
5.6-5.6 N.m
Range Of Product:
QO
Eu Rohs Directive:
Compliant with Exemptions
Warranty:
18 months
Line Rated Current:
100 A
