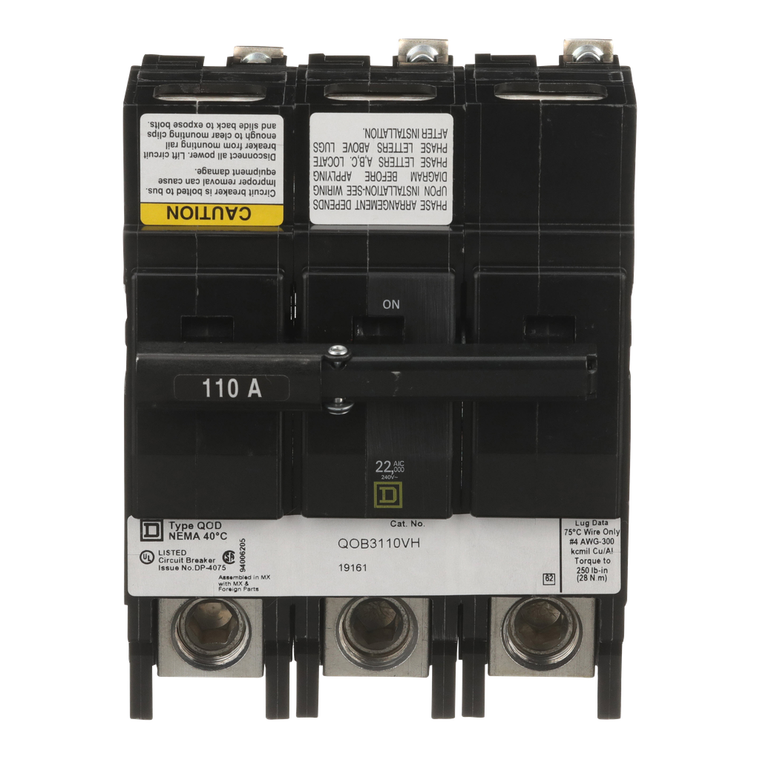

Schneider Electric QOB3110VH Miniature Circuit Breaker 240V 110A

(No reviews yet) Write a Review

Write a Review

Schneider Electric QOB3110VH Miniature Circuit Breaker 240V 110A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

QOB3110VH

UPC:

785901065432

MPN:

Condition:

New

Width:

114 mm

Sustainable Offer Status:

Green Premium product

Line Rated Current:

110 A

Circuit Breaker Application:

not rated

Awg Gauge:

AWG 4...300 kcmil copper or aluminium

Product Or Component Type:

miniature circuit-breaker

California Proposition 65:

WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Eu Rohs Directive:

Compliant with Exemptions

Mounting Mode:

bolt-on

Poles Description:

3P

Net Weight:

1.792 kg

Mercury Free:

Yes

Range Of Product:

QO

Breaking Capacity:

22 kA 120/240 V AC 50/60 Hz || 22 kA 240 V AC 50/60 Hz || 22 kA 120 V AC 50/60 Hz

Ambient Air Temperature For Operation:

40 °C

Number Of Spaces Required:

6

Circularity Profile:

N/A

Circuit Breaker Type:

standard

Depth:

124 mm

Electrical Connection:

box lugs

Halogen Content Performance:

Halogen free product

[Ue] Rated Operational Voltage:

120/240 V AC || 240 V AC || 120 V AC

Rohs Exemption Information:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Height:

145 mm

Warranty:

18 months

Tightening Torque:

5.6-5.6 N.m

Product Certifications:

UL Listed || CSA

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Brochure:

View

Catalog:

View

Datasheet:

View
