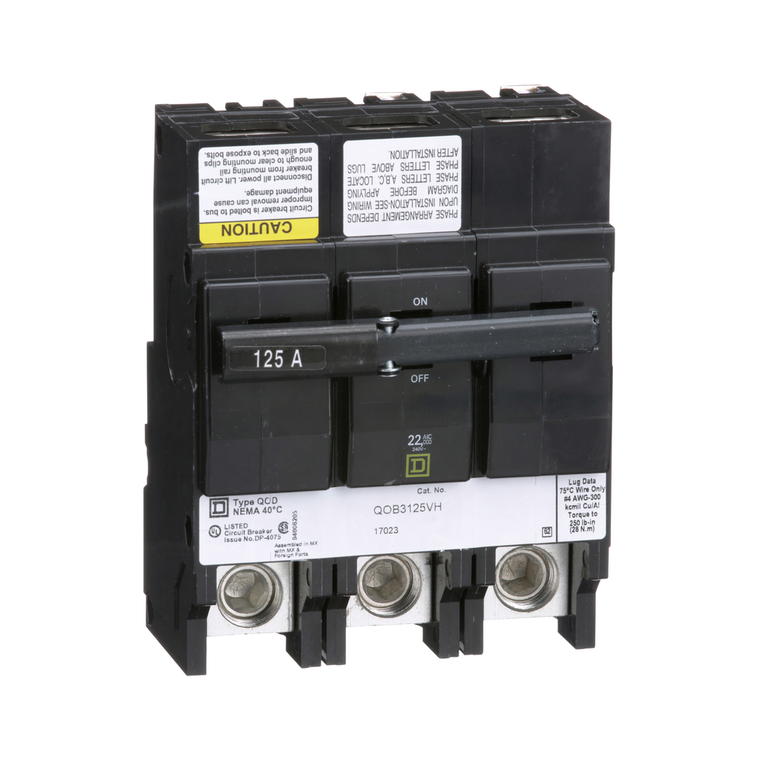

Schneider Electric QOB3125VH Miniature Circuit Breaker 240V 125A

Schneider Electric QOB3125VH Miniature Circuit Breaker 240V 125A

Schneider Electric
SKU:
QOB3125VH
|
UPC:
785901065470
Availability:
Factory stock
$1,824.48
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 125A at 120/240VAC. This unit provides 22kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Additional Information
Circuit Breaker Application:
not rated
Range Of Product:
QO
Product Or Component Type:
miniature circuit-breaker
[Ue] Rated Operational Voltage:
120/240 V AC || 240 V AC || 120 V AC
Height:
145 mm
Poles Description:
3P
Line Rated Current:
125 A
Awg Gauge:
AWG 4...300 kcmil copper or aluminium
Number Of Spaces Required:
6
Circularity Profile:
N/A
Circuit Breaker Type:
standard
Eu Rohs Directive:
Compliant with Exemptions
Depth:
124 mm
Breaking Capacity:
22 kA 120/240 V AC 50/60 Hz || 22 kA 240 V AC 50/60 Hz || 22 kA 120 V AC 50/60 Hz
Warranty:
18 months
Mounting Mode:
bolt-on
Width:
114 mm
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Mercury Free:
Yes
Net Weight:
0.435 kg
Ambient Air Temperature For Operation:
40 °C
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Sustainable Offer Status:
Green Premium product
Electrical Connection:
box lugs
California Proposition 65:
WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Rohs Exemption Information:
Yes
Product Certifications:
UL Listed || CSA
Tightening Torque:
5.6-5.6 N.m
Halogen Content Performance:
Halogen free product
