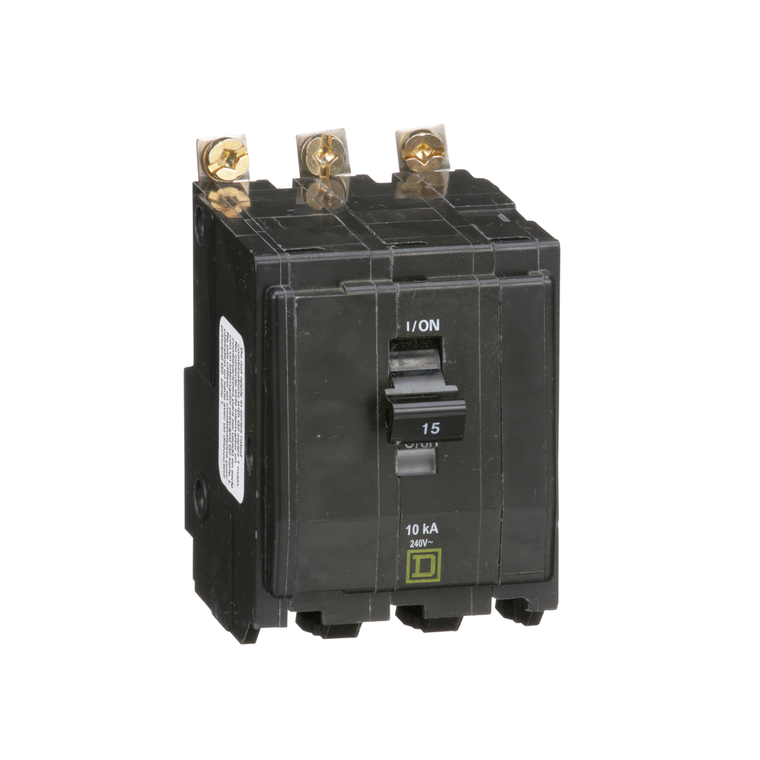

Schneider Electric QOB315 Miniature Circuit Breaker 240V 15A
Schneider Electric
$316.44
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 15A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Toxic Heavy Metal Free:
- Yes
- Awg Gauge:
- AWG 14...AWG 8 copper or aluminium
- Width:
- 57 mm
- Range Of Product:
- QO
- Eu Rohs Directive:
- Compliant with Exemptions
- Electrical Connection:
- pressure plate
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Tightening Torque:
- 4-4 N.m
- Net Weight:
- 0.386 kg
- Circuit Breaker Application:
- HACR rated
- Mounting Mode:
- bolt-on
- Breaking Capacity:
- 10 kA 120/240 V AC 50/60 Hz || 10 kA 240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
- Number Of Spaces Required:
- 3
- Sustainable Offer Status:
- Green Premium product
- Depth:
- 74 mm
- Product Or Component Type:
- miniature circuit-breaker
- Mercury Free:
- Yes
- Poles Description:
- 3P
- Height:
- 76 mm
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 240 V AC || 120 V AC
- Circularity Profile:
- N/A
- Ambient Air Temperature For Operation:
- 40 °C
- Line Rated Current:
- 15 A
- Rohs Exemption Information:
- Yes
- Circuit Breaker Type:
- standard
- Halogen Content Performance:
- Halogen free product
- Warranty:
- 18 months
- Product Certifications:
- UL Listed || CSA
