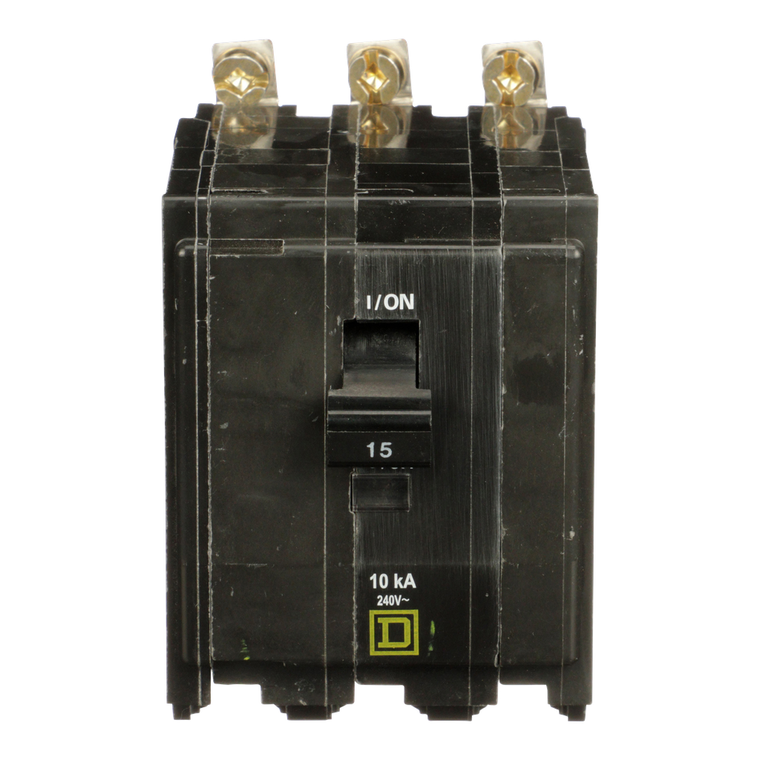

Schneider Electric QOB3155237 Miniature Circuit Breaker 240V 15A
Schneider Electric
$351.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 15A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes ring terminals. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Mercury Free:
- Yes
- Warranty:
- 18 months
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 240 V AC || 120 V AC
- Breaking Capacity:
- 10 kA 120/240 V AC 50/60 Hz || 10 kA 240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
- Sustainable Offer Status:
- Green Premium product
- Circuit Breaker Type:
- standard
- Awg Gauge:
- AWG 14...AWG 8 copper or aluminium
- Circularity Profile:
- N/A
- Tightening Torque:
- 4-4 N.m
- Poles Description:
- 3P
- Product Or Component Type:
- miniature circuit-breaker
- Net Weight:
- 0.372 kg
- Depth:
- 74 mm
- Width:
- 57 mm
- Range Of Product:
- QO
- Ambient Air Temperature For Operation:
- 40 °C
- Line Rated Current:
- 15 A
- Circuit Breaker Application:
- HACR rated
- Mounting Mode:
- bolt-on
- Product Certifications:
- UL Listed || CSA
- Number Of Spaces Required:
- 3
- Toxic Heavy Metal Free:
- Yes
- Rohs Exemption Information:
- Yes
- Halogen Content Performance:
- Halogen free product
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Electrical Connection:
- ring tongue
- Height:
- 76 mm
- Eu Rohs Directive:
- Compliant with Exemptions
