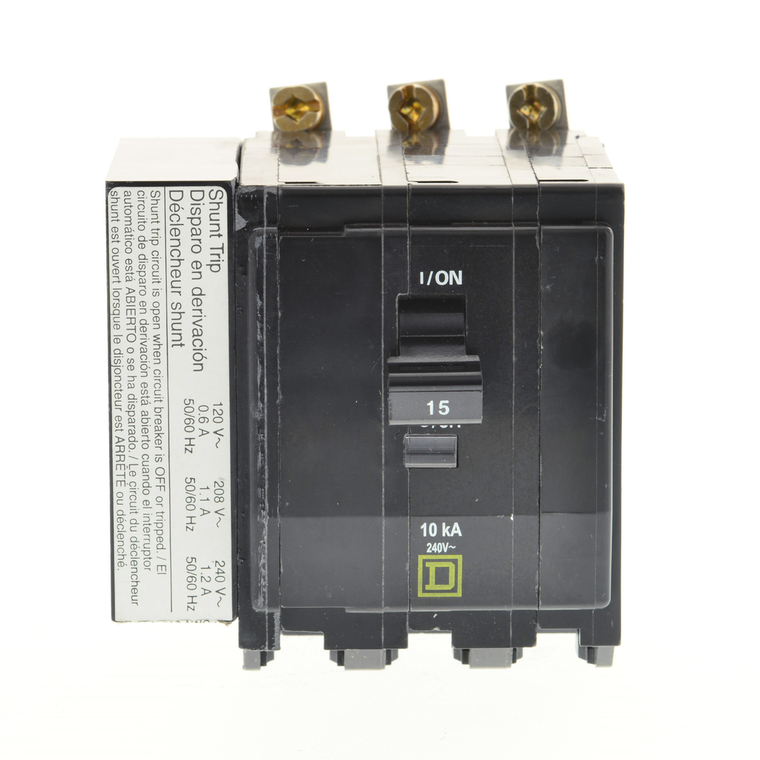

Schneider Electric QOB3155252 Miniature Circuit Breaker 240V 15A

Schneider Electric QOB3155252 Miniature Circuit Breaker 240V 15A

Schneider Electric
SKU:
QOB3155252
|
UPC:
785901105527
Availability:
Factory stock
$756.42
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 15A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes an AC shunt trip and ring terminals. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Additional Information
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Rohs Exemption Information:
Yes
Electrical Connection:
ring tongue
Product Or Component Type:
miniature circuit-breaker
Circuit Breaker Application:
HACR rated
Number Of Spaces Required:
3
Mercury Free:
Yes
Circuit Breaker Type:
standard
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Warranty:
18 months
Circularity Profile:
N/A
Range Of Product:
QO
Net Weight:
0.395 kg
Ambient Air Temperature For Operation:
40 °C
Toxic Heavy Metal Free:
Yes
Tightening Torque:
4-4 N.m
Product Certifications:
UL Listed || CSA
Halogen Content Performance:
Halogen free product
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Poles Description:
3P
Mounting Mode:
bolt-on
Sustainable Offer Status:
Green Premium product
Breaking Capacity:
10 kA 120/240 V AC 50/60 Hz || 10 kA 240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
Line Rated Current:
15 A
Eu Rohs Directive:
Compliant with Exemptions
[Ue] Rated Operational Voltage:
120/240 V AC || 240 V AC || 120 V AC
Accessory / Separate Part Type:
shunt trip 120/208/240 V AC
Brochure:
View
Catalog:
View
Datasheet:
View
