Schneider Electric QOB320VH1021 Miniature Circuit Breaker 240V 20A
Schneider Electric

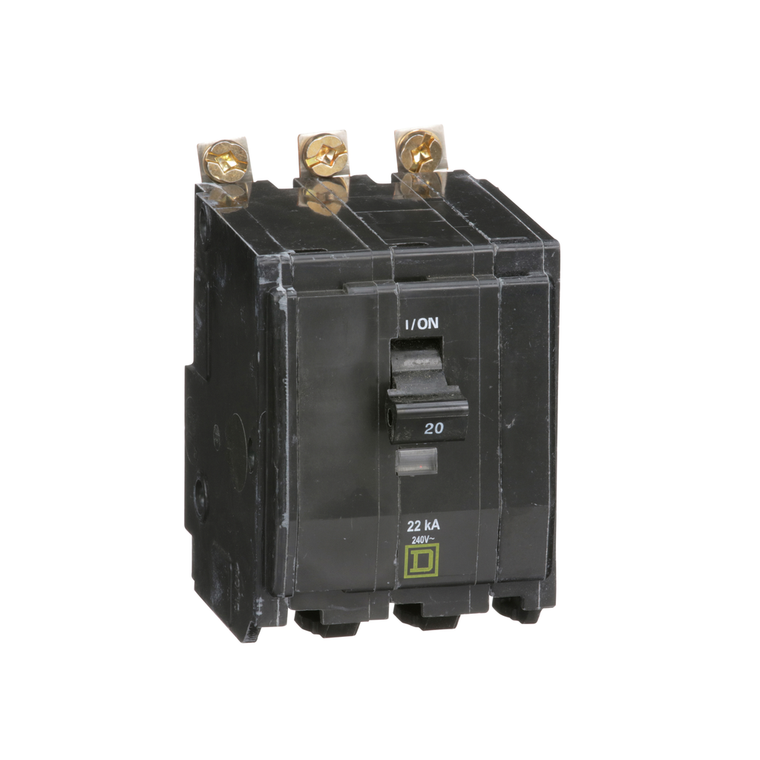

Schneider Electric QOB320VH Miniature Circuit Breaker 240V 20A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 22kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Awg Gauge:
- AWG 14...AWG 8 copper or aluminium
- Ambient Air Temperature For Operation:
- 40 °C
- Circuit Breaker Application:
- HACR rated
- Circuit Breaker Type:
- standard
- Mounting Mode:
- bolt-on
- Product Or Component Type:
- miniature circuit-breaker
- Electrical Connection:
- pressure plate
- Poles Description:
- 3P
- Height:
- 76 mm
- Line Rated Current:
- 20 A
- Depth:
- 74 mm
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 240 V AC || 120 V AC
- Product Certifications:
- UL Listed || CSA
- Halogen Content Performance:
- Halogen free product
- Range Of Product:
- QO
- Eu Rohs Directive:
- Compliant with Exemptions
- Circularity Profile:
- N/A
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Sustainable Offer Status:
- Green Premium product
- Warranty:
- 18 months
- Mercury Free:
- Yes
- Net Weight:
- 0.363 kg
- Rohs Exemption Information:
- Yes
- Number Of Spaces Required:
- 3
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Toxic Heavy Metal Free:
- Yes
- Width:
- 57 mm
- Tightening Torque:
- 4.6-4.6 N.m
- Breaking Capacity:
- 22 kA 120/240 V AC 50/60 Hz || 22 kA 240 V AC 50/60 Hz || 22 kA 120 V AC 50/60 Hz
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
