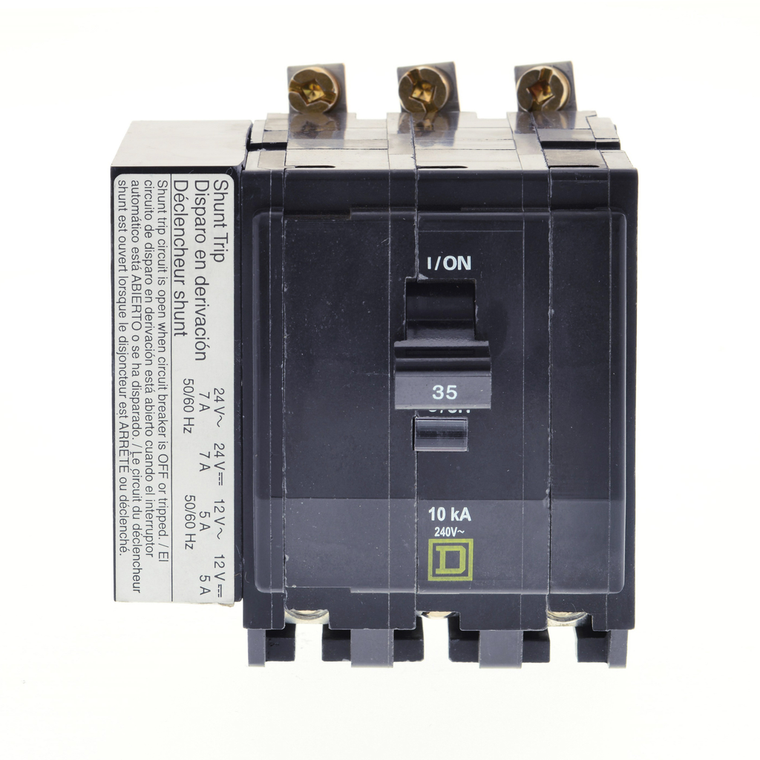

Schneider Electric QOB3351042 Miniature Circuit Breaker 240V 35A
Schneider Electric
$723.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric QOB3351042 Miniature Circuit Breaker 240V 35A
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 35A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes an AC/DC shunt trip. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Accessory / Separate Part Type:
- shunt trip 12/24 V AC/DC
- Number Of Spaces Required:
- 4
- Eu Rohs Directive:
- Compliant with Exemptions
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Depth:
- 74 mm
- Breaking Capacity:
- 10 kA 120/240 V AC 50/60 Hz || 10 kA 240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
- Line Rated Current:
- 35 A
- Circuit Breaker Application:
- HACR rated
- Ambient Air Temperature For Operation:
- 40 °C
- Mercury Free:
- Yes
- Net Weight:
- 0.549 kg
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Height:
- 79 mm
- Product Or Component Type:
- miniature circuit-breaker
- Toxic Heavy Metal Free:
- Yes
- Mounting Mode:
- bolt-on
- Product Certifications:
- UL Listed || CSA
- Poles Description:
- 3P
- Warranty:
- 18 months
- Range Of Product:
- QO
- Width:
- 76 mm
- Electrical Connection:
- pressure plate
- Rohs Exemption Information:
- Yes
- Awg Gauge:
- AWG 14...AWG 8 copper or aluminium
- Circuit Breaker Type:
- standard
- Tightening Torque:
- 5-5 N.m 10-25 mm² (AWG 8...AWG 2)
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 240 V AC || 120 V AC
