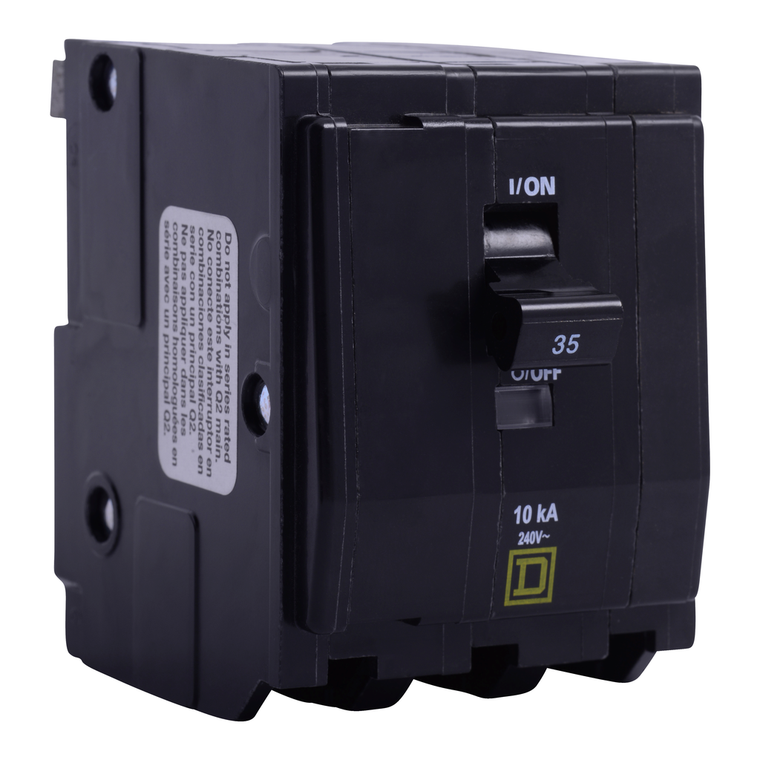

Schneider Electric QOB3355238 Miniature Circuit Breaker 240V 35A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 35A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes ring terminals. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Rohs Exemption Information:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- Electrical Connection:
- ring tongue
- Mounting Mode:
- bolt-on
- Range Of Product:
- QO
- Tightening Torque:
- 4.6-4.6 N.m
- Sustainable Offer Status:
- Green Premium product
- Product Certifications:
- UL Listed || CSA
- Breaking Capacity:
- 10 kA 120/240 V AC 50/60 Hz || 10 kA 240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Width:
- 57 mm
- Line Rated Current:
- 35 A
- Depth:
- 74 mm
- Toxic Heavy Metal Free:
- Yes
- Number Of Spaces Required:
- 3
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive:
- Compliant with Exemptions
- Circuit Breaker Type:
- standard
- Height:
- 79 mm
- Warranty:
- 18 months
- Halogen Content Performance:
- Halogen free product
- Ambient Air Temperature For Operation:
- 40 °C
- Circuit Breaker Application:
- HACR rated
- Poles Description:
- 3P
- Mercury Free:
- Yes
- Awg Gauge:
- AWG 8...AWG 2 copper
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 240 V AC || 120 V AC
- Circularity Profile:
- N/A
- Product Or Component Type:
- miniature circuit-breaker
- Net Weight:
- 0.390 kg
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
Related Products
-
-
Schneider Electric QOUQ235B Miniature Circuit Breaker 240V 35A
Schneider Electric
-

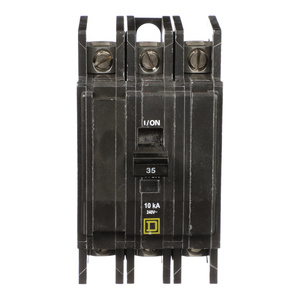

Schneider Electric QOU335 Miniature Circuit Breaker 240V 35A
