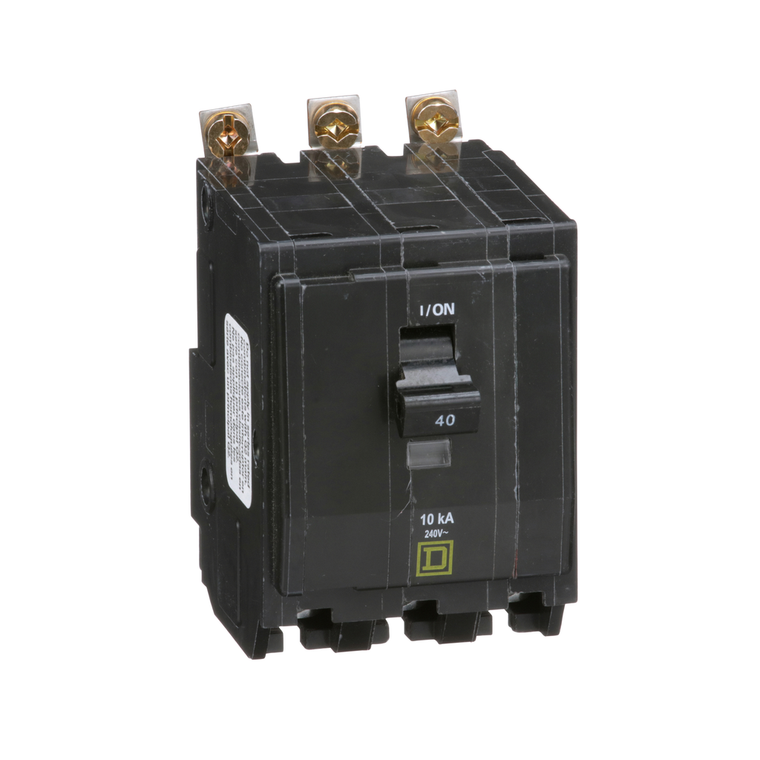

Schneider Electric QOB340 Miniature Circuit Breaker 240V 40A
Schneider Electric
$316.44
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric QOB340 Miniature Circuit Breaker 240V 40A
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 40A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Sustainable Offer Status:
- Green Premium product
- Tightening Torque:
- 5-5 N.m
- Mercury Free:
- Yes
- Mounting Mode:
- bolt-on
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Poles Description:
- 3P
- Halogen Content Performance:
- Halogen free product
- Product Or Component Type:
- miniature circuit-breaker
- Number Of Spaces Required:
- 3
- Circuit Breaker Application:
- HACR rated
- Breaking Capacity:
- 10 kA 120/240 V AC 50/60 Hz || 10 kA 240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
- Circularity Profile:
- N/A
- Eu Rohs Directive:
- Compliant with Exemptions
- Electrical Connection:
- box lugs
- Product Certifications:
- UL Listed || CSA
- Width:
- 57 mm
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Depth:
- 74 mm
- Ambient Air Temperature For Operation:
- 40 °C
- Range Of Product:
- QO
- Warranty:
- 18 months
- Height:
- 79 mm
- Net Weight:
- 0.363 kg
- Line Rated Current:
- 40 A
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 240 V AC || 120 V AC
- Circuit Breaker Type:
- standard
- Awg Gauge:
- AWG 8...AWG 2 copper or aluminium
- Toxic Heavy Metal Free:
- Yes
- Rohs Exemption Information:
- Yes
