Schneider Electric QOB340FT Miniature Circuit Breaker 240V 40A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 40A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a fungal treatment. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Height:
- 79 mm
- Circuit Breaker Application:
- HACR rated
- Depth:
- 74 mm
- Toxic Heavy Metal Free:
- Yes
- Tightening Torque:
- 5-5 N.m
- Product Or Component Type:
- miniature circuit-breaker
- Electrical Connection:
- box lugs
- Number Of Spaces Required:
- 3
- Mercury Free:
- Yes
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 240 V AC || 120 V AC
- Mounting Mode:
- bolt-on
- Rohs Exemption Information:
- Yes
- Eu Rohs Directive:
- Compliant with Exemptions
- Line Rated Current:
- 40 A
- Ambient Air Temperature For Operation:
- 40 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Poles Description:
- 3P
- Width:
- 57 mm
- Range Of Product:
- QO
- Product Certifications:
- UL Listed || CSA
- Circuit Breaker Type:
- standard
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Awg Gauge:
- AWG 8...AWG 2 copper or aluminium
- Breaking Capacity:
- 10 kA 120/240 V AC 50/60 Hz || 10 kA 240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
- Warranty:
- 18 months
- Net Weight:
- 0.404 kg
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
Related Products
-
-
Schneider Electric QOU3401021 Miniature Circuit Breaker 240V 40A
Schneider Electric
-
Schneider Electric QOB240VH1021 Miniature Circuit Breaker 240V 40A
Schneider Electric
-

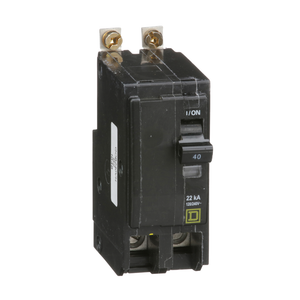

Schneider Electric QOB240VH Miniature Circuit Breaker 240V 40A
