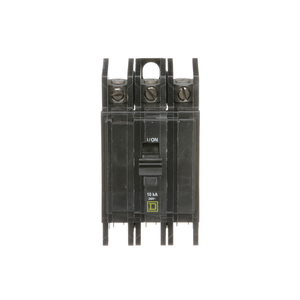

Schneider Electric QOB3505254 Miniature Circuit Breaker 240V 50A

(No reviews yet) Write a Review

Write a Review

Schneider Electric QOB3505254 Miniature Circuit Breaker 240V 50A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

QOB3505254

UPC:

7.85901E+11

MPN:

Condition:

New

Accessory / Separate Part Type:

shunt trip 120/208/240 V AC

Circuit Breaker Type:

standard

Net Weight:

0.549 kg

Rohs Exemption Information:

Yes

Tightening Torque:

5-5 N.m

Depth:

74 mm

Sustainable Offer Status:

Green Premium product

Ambient Air Temperature For Operation:

40 °C

[Ue] Rated Operational Voltage:

120/240 V AC || 240 V AC || 120 V AC

Height:

79 mm

Circuit Breaker Application:

HACR rated

Circularity Profile:

N/A

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Eu Rohs Directive:

Compliant with Exemptions

Poles Description:

3P

Toxic Heavy Metal Free:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Warranty:

18 months

Line Rated Current:

50 A

Mounting Mode:

bolt-on

Mercury Free:

Yes

Range Of Product:

QO

Product Or Component Type:

miniature circuit-breaker

Breaking Capacity:

10 kA 120/240 V AC 50/60 Hz || 10 kA 240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz

Number Of Spaces Required:

4

Electrical Connection:

ring tongue

Awg Gauge:

AWG 8...AWG 2 copper

Width:

76 mm

Product Certifications:

UL Listed || CSA

Halogen Content Performance:

Halogen free product

Brochure:

View

Catalog:

View

Datasheet:

View
