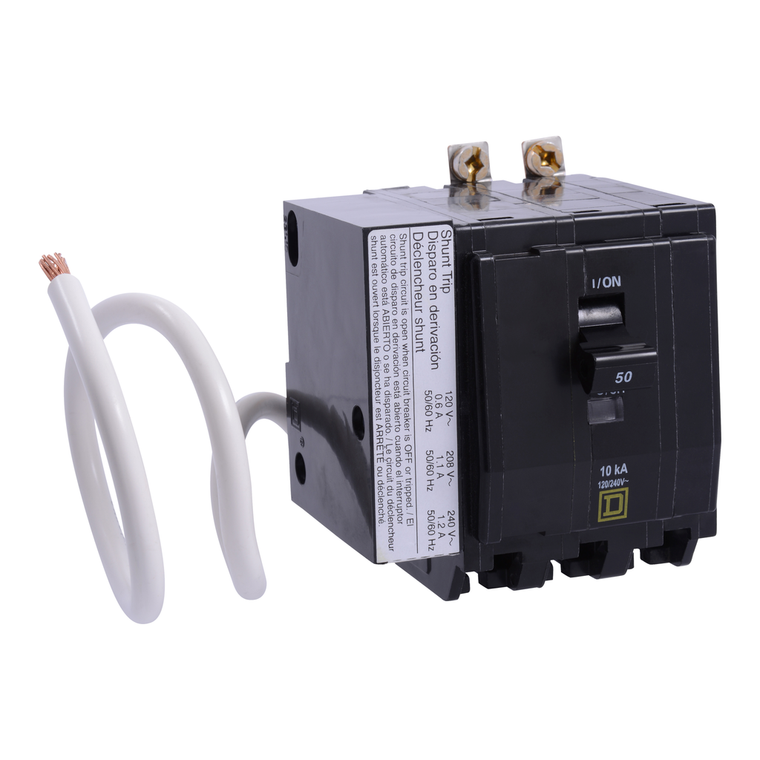

Schneider Electric QOB350SWN1021 Miniature Circuit Breaker 240V 50A
Schneider Electric
$359.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric QOB350SWN1021 Miniature Circuit Breaker 240V 50A
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 50A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a switch neutral and AC shunt trip. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Mercury Free:
- Yes
- Range Of Product:
- QO
- Product Certifications:
- UL Listed || CSA
- Rohs Exemption Information:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Product Or Component Type:
- miniature circuit-breaker
- Width:
- 76 mm
- Number Of Spaces Required:
- 4
- Net Weight:
- 0.594 kg
- Electrical Connection:
- box lugs
- [Ue] Rated Operational Voltage:
- 120/240 V AC
- Depth:
- 74 mm
- Eu Rohs Directive:
- Compliant with Exemptions
- Circularity Profile:
- N/A
- Sustainable Offer Status:
- Green Premium product
- Breaking Capacity:
- 10 kA 120/240 V AC 50/60 Hz
- Toxic Heavy Metal Free:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Tightening Torque:
- 5-5 N.m
- Circuit Breaker Type:
- switch neutral
- Height:
- 79 mm
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Warranty:
- 18 months
- Line Rated Current:
- 50 A
- Circuit Breaker Application:
- not rated
- Ambient Air Temperature For Operation:
- 40 °C
- Halogen Content Performance:
- Halogen free product
- Awg Gauge:
- AWG 8...AWG 2 copper or aluminium
- Mounting Mode:
- bolt-on
- Accessory / Separate Part Type:
- shunt trip 120/208/240 V AC
- Poles Description:
- 3P
