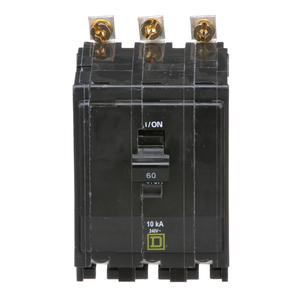

Schneider Electric QOB3601042 Miniature Circuit Breaker 240V 60A

Schneider Electric QOB3601042 Miniature Circuit Breaker 240V 60A

Schneider Electric
SKU:
QOB3601042
|
UPC:
7.85901E+11
Availability:
Contact us to confirm availability and lead times.
$482.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

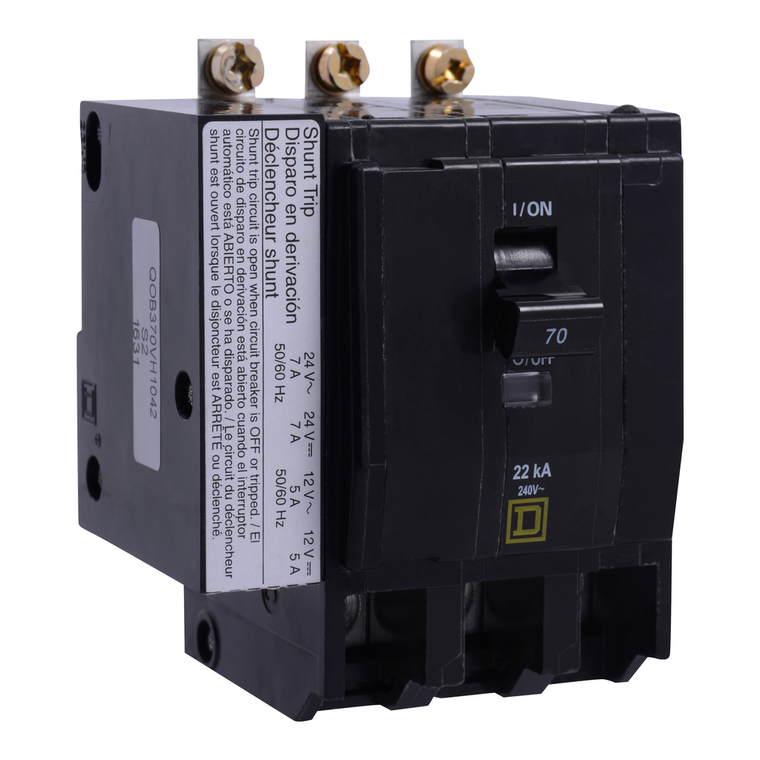

QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 60A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes an AC/DC shunt trip. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Additional Information
Breaking Capacity:
10 kA 120/240 V AC 50/60 Hz || 10 kA 240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
Range Of Product:
QO
Accessory / Separate Part Type:
shunt trip 12/24 V AC/DC
Circularity Profile:
N/A
Awg Gauge:
AWG 8...AWG 2 copper or aluminium
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Net Weight:
0.567 kg
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Depth:
74 mm
[Ue] Rated Operational Voltage:
120/240 V AC || 240 V AC || 120 V AC
Mercury Free:
Yes
Line Rated Current:
60 A
Product Certifications:
UL Listed || CSA
Ambient Air Temperature For Operation:
40 °C
Poles Description:
3P
Width:
76 mm
Sustainable Offer Status:
Green Premium product
Circuit Breaker Type:
standard
Tightening Torque:
5-5 N.m
Number Of Spaces Required:
4
Height:
79 mm
Warranty:
18 months
Eu Rohs Directive:
Compliant with Exemptions
Halogen Content Performance:
Halogen free product
Product Or Component Type:
miniature circuit-breaker
Rohs Exemption Information:
Yes
Mounting Mode:
bolt-on
Toxic Heavy Metal Free:
Yes
Circuit Breaker Application:
HACR rated
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Electrical Connection:
box lugs
