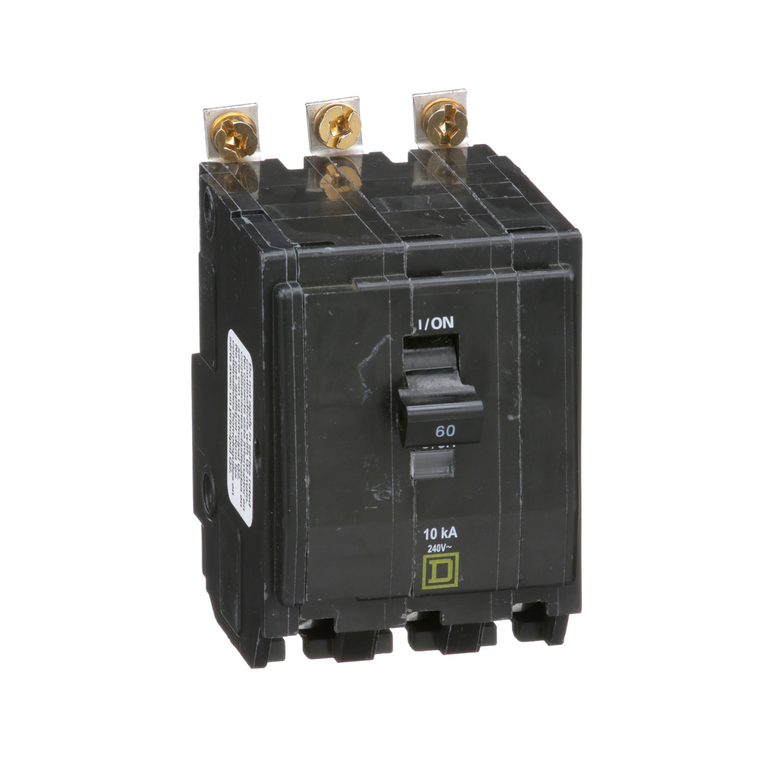

Schneider Electric QOB360J Miniature Circuit Breaker 240V 60A

Schneider Electric QOB360J Miniature Circuit Breaker 240V 60A

Schneider Electric
SKU:
QOB360J
|
UPC:
3606486145869
Availability:
Contact us to confirm availability and lead times.
$293.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 60A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Additional Information
Electrical Connection:
box lugs
Ambient Air Temperature For Operation:
40 °C
Warranty:
18 months
Height:
79 mm
Width:
57 mm
Line Rated Current:
60 A
Awg Gauge:
AWG 8...AWG 2 copper or aluminium
Range Of Product:
QO
Eu Rohs Directive:
Under investigation
Tightening Torque:
5-5 N.m
Circuit Breaker Type:
standard
Net Weight:
0.186 kg
Poles Description:
3P
Depth:
74 mm
Breaking Capacity:
10 kA 120/240 V AC 50/60 Hz || 10 kA 240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
Product Or Component Type:
miniature circuit-breaker
Number Of Spaces Required:
3
Circuit Breaker Application:
HACR rated
Product Certifications:
UL Listed || CSA
Mounting Mode:
bolt-on
[Ue] Rated Operational Voltage:
120/240 V AC || 240 V AC || 120 V AC
