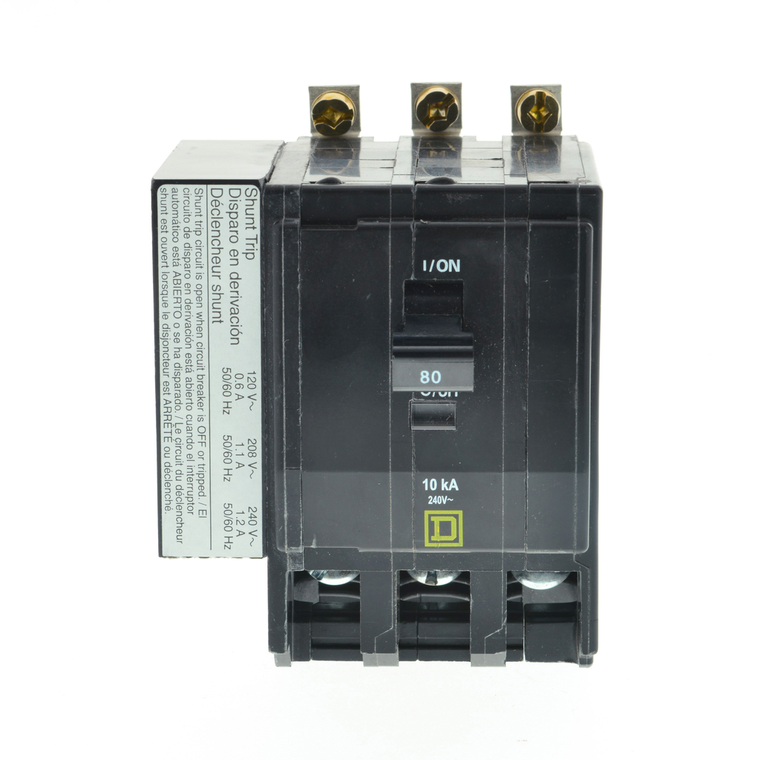

Schneider Electric QOB3805274 Miniature Circuit Breaker 240V 80A
Schneider Electric
$692.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 80A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes an AC shunt trip and ring terminals. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Number Of Spaces Required:
- 3
- Halogen Content Performance:
- Halogen free product
- Rohs Exemption Information:
- Yes
- Breaking Capacity:
- 10 kA 120/240 V AC 50/60 Hz || 10 kA 240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
- Tightening Torque:
- 5.6-5.6 N.m
- Sustainable Offer Status:
- Green Premium product
- Depth:
- 74 mm
- Range Of Product:
- QO
- Product Or Component Type:
- miniature circuit-breaker
- Circuit Breaker Type:
- standard
- Ambient Air Temperature For Operation:
- 40 °C
- Height:
- 79 mm
- Circuit Breaker Application:
- HACR rated
- Mercury Free:
- Yes
- Product Certifications:
- UL Listed || CSA
- Width:
- 57 mm
- Mounting Mode:
- bolt-on
- Warranty:
- 18 months
- Eu Rohs Directive:
- Compliant with Exemptions
- Net Weight:
- 0.640 kg
- Awg Gauge:
- AWG 8...AWG 2 copper or aluminium
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Accessory / Separate Part Type:
- shunt trip 120/208/240 V AC
- Circularity Profile:
- N/A
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 240 V AC || 120 V AC
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Electrical Connection:
- ring tongue
- Poles Description:
- 3P
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Line Rated Current:
- 80 A
