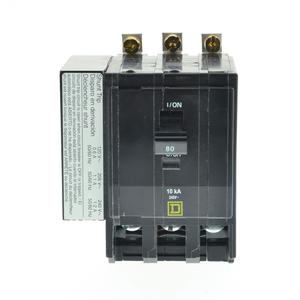

Schneider Electric QOB3805288 Miniature Circuit Breaker 240V 80A
Schneider Electric
$692.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric QOB3805288 Miniature Circuit Breaker 240V 80A
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 80A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes an AC/DC shunt trip. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Accessory / Separate Part Type:
- shunt trip 12/24 V AC/DC
- Product Or Component Type:
- miniature circuit-breaker
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Circuit Breaker Application:
- HACR rated
- Circuit Breaker Type:
- standard
- Eu Rohs Directive:
- Compliant with Exemptions
- Warranty:
- 18 months
- Number Of Spaces Required:
- 4
- Line Rated Current:
- 80 A
- Electrical Connection:
- ring tongue
- Product Certifications:
- UL Listed || CSA
- Height:
- 89 mm
- Breaking Capacity:
- 10 kA 120/240 V AC 50/60 Hz || 10 kA 240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 240 V AC || 120 V AC
- Poles Description:
- 3P
- Tightening Torque:
- 5.6-5.6 N.m
- Width:
- 57 mm
- Sustainable Offer Status:
- Green Premium product
- Mercury Free:
- Yes
- Circularity Profile:
- N/A
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Depth:
- 74 mm
- Ambient Air Temperature For Operation:
- 40 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Mounting Mode:
- bolt-on
- Range Of Product:
- QO
- Rohs Exemption Information:
- Yes
- Net Weight:
- 0.513 kg
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
