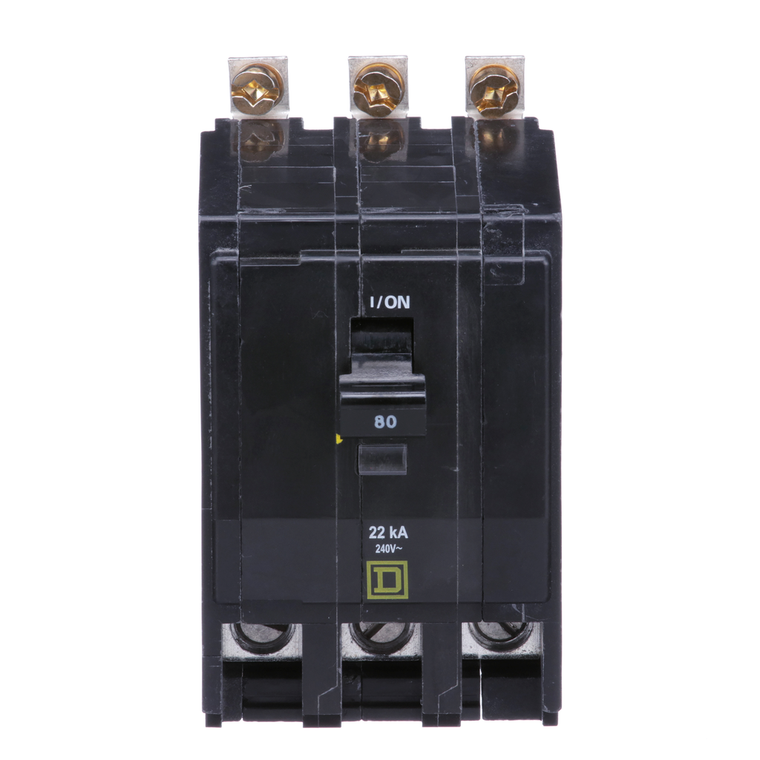

Schneider Electric QOB380VH Miniature Circuit Breaker 240V 80A
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 80A at 120/240VAC. This unit provides 22kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Breaking Capacity:
- 22 kA 120/240 V AC 50/60 Hz || 22 kA 240 V AC 50/60 Hz || 22 kA 120 V AC 50/60 Hz
- Net Weight:
- 0.476 kg
- Tightening Torque:
- 5.6-5.6 N.m
- Range Of Product:
- QO
- Mercury Free:
- Yes
- Halogen Content Performance:
- Halogen free product
- Product Or Component Type:
- miniature circuit-breaker
- Circuit Breaker Type:
- standard
- Warranty:
- 18 months
- Width:
- 57 mm
- Circuit Breaker Application:
- HACR rated
- Product Certifications:
- UL Listed || CSA
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 240 V AC || 120 V AC
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Mounting Mode:
- bolt-on
- Depth:
- 74 mm
- Line Rated Current:
- 80 A
- Electrical Connection:
- box lugs
- Sustainable Offer Status:
- Green Premium product
- Circularity Profile:
- N/A
- Number Of Spaces Required:
- 3
- Eu Rohs Directive:
- Compliant with Exemptions
- Ambient Air Temperature For Operation:
- 40 °C
- Awg Gauge:
- AWG 4...AWG 2/0 copper or aluminium
- Height:
- 89 mm
- Poles Description:
- 3P
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Rohs Exemption Information:
- Yes
