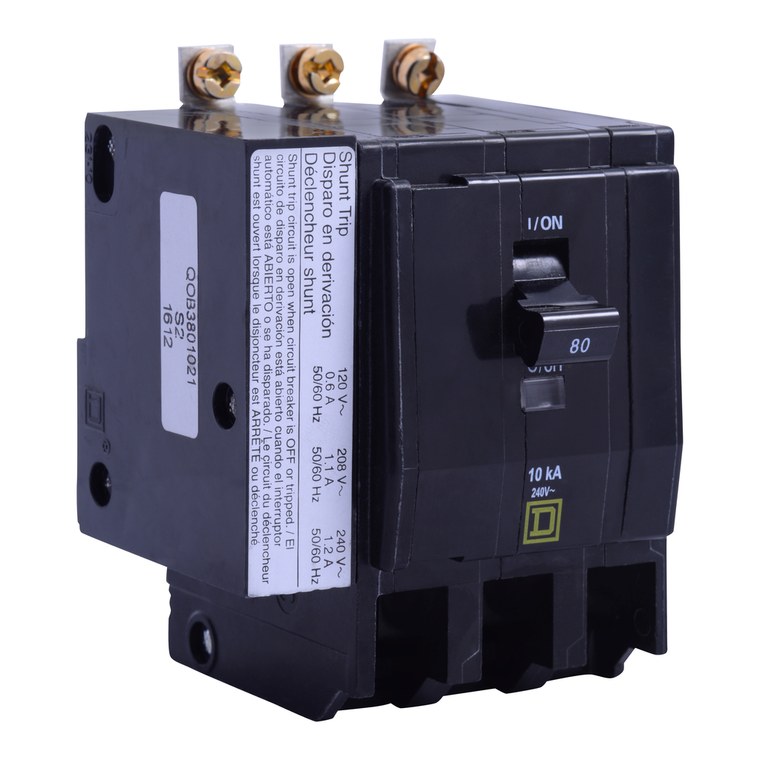

Schneider Electric QOB380VH1021 Miniature Circuit Breaker 240V 80A

(No reviews yet) Write a Review

Write a Review

Schneider Electric QOB380VH1021 Miniature Circuit Breaker 240V 80A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

QOB380VH1021

UPC:

7.85902E+11

MPN:

Condition:

New

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Poles Description:

3P

Width:

76 mm

Eu Rohs Directive:

Compliant with Exemptions

Height:

89 mm

Circuit Breaker Type:

standard

Product Certifications:

UL Listed || CSA

Circularity Profile:

N/A

Depth:

74 mm

Circuit Breaker Application:

HACR rated

Mercury Free:

Yes

Sustainable Offer Status:

Green Premium product

Warranty:

18 months

Net Weight:

0.617 kg

Accessory / Separate Part Type:

shunt trip 120/208/240 V AC

Tightening Torque:

5.6-5.6 N.m

California Proposition 65:

WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Rohs Exemption Information:

Yes

Electrical Connection:

box lugs

Awg Gauge:

AWG 4...AWG 2/0 copper or aluminium

Breaking Capacity:

22 kA 120/240 V AC 50/60 Hz || 22 kA 240 V AC 50/60 Hz || 22 kA 120 V AC 50/60 Hz

Mounting Mode:

bolt-on

Ambient Air Temperature For Operation:

40 °C

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Range Of Product:

QO

Line Rated Current:

80 A

Halogen Content Performance:

Halogen free product

Product Or Component Type:

miniature circuit-breaker

[Ue] Rated Operational Voltage:

120/240 V AC || 240 V AC || 120 V AC

Number Of Spaces Required:

4

Brochure:

View

Catalog:

View

Datasheet:

View
