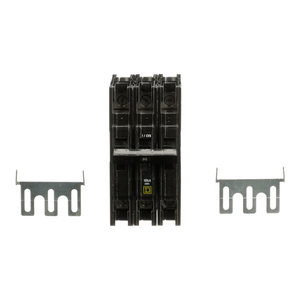

Schneider Electric QOB390 Miniature Circuit Breaker 240V 90A

(No reviews yet) Write a Review

Write a Review

Schneider Electric QOB390 Miniature Circuit Breaker 240V 90A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

QOB390

UPC:

785901019725

MPN:

Condition:

New

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Width:

57 mm

Circuit Breaker Type:

standard

Breaking Capacity:

10 kA 120/240 V AC 50/60 Hz || 10 kA 240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz

Halogen Content Performance:

Halogen free product

Number Of Spaces Required:

3

Warranty:

18 months

Electrical Connection:

box lugs

Line Rated Current:

90 A

Depth:

74 mm

Ambient Air Temperature For Operation:

40 °C

Product Or Component Type:

miniature circuit-breaker

Mounting Mode:

bolt-on

Product Certifications:

UL Listed || CSA

Rohs Exemption Information:

Yes

Height:

89 mm

Sustainable Offer Status:

Green Premium product

California Proposition 65:

WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

[Ue] Rated Operational Voltage:

120/240 V AC || 240 V AC || 120 V AC

Mercury Free:

Yes

Circularity Profile:

N/A

Tightening Torque:

5.6-5.6 N.m

Eu Rohs Directive:

Compliant with Exemptions

Net Weight:

0.490 kg

Range Of Product:

QO

Poles Description:

3P

Circuit Breaker Application:

HACR rated

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Awg Gauge:

AWG 4...AWG 2/0 copper or aluminium
