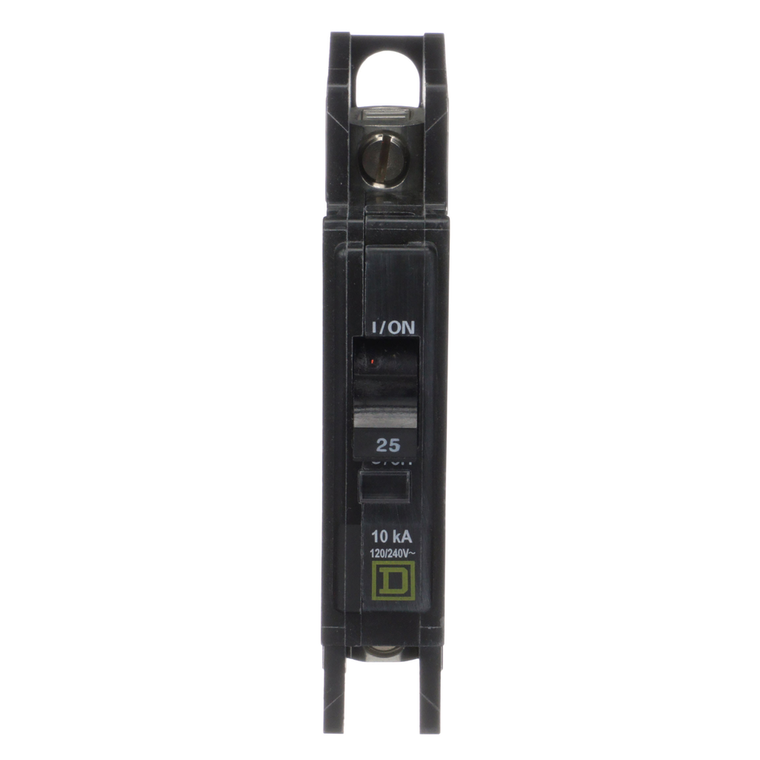

Schneider Electric QOU125B Miniature Circuit Breaker 120/240V 25A
Schneider Electric
$37.80
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric QOU125B Miniature Circuit Breaker 120/240V 25A
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QOU unit mount miniature circuit breakers (cable-in/cable-out) are ideal for OEM applications. QOU breakers are one, two or three pole thermal magnetic circuit breakers which provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This one pole QOU miniature circuit breaker is rated as 25A, 120/240 VAC. This unit provides 10 kA breaking capacity. A full line of accessories are available for these circuit breakers. The slotted box lugs will accept one 14 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a maximum height of 4.05 inches, a maximum width of 0.75 inch and maximum depth of 2.95 inches. QOU circuit breakers are UL Listed and CSA Certified. This miniature circuit breaker is bulk packaged.
- Product Certifications:
- IEC || UL Listed || CSA
- Circuit Breaker Type:
- standard
- Tightening Torque:
- 45-45 lbf.in (AWG 14...AWG 2)
- Circularity Profile:
- N/A
- Mounting Mode:
- unit mount
- Halogen Content Performance:
- Halogen free product
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Warranty:
- 18 months
- Eu Rohs Directive:
- Compliant with Exemptions
- Circuit Breaker Application:
- HACR rated
- Mercury Free:
- Yes
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 120 V AC || 48 V DC
- Line Rated Current:
- 25 A
- Awg Gauge:
- AWG 14...AWG 2 aluminium/copper
- Rohs Exemption Information:
- Yes
- Height:
- 4.05 in
- Toxic Heavy Metal Free:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Type Of Packing:
- bulk
- Electrical Connection:
- slotted box lugs, line side || slotted box lugs, load side
- Width:
- 0.75 in
- Depth:
- 2.95 in
- Sustainable Offer Status:
- Green Premium product
- Product Or Component Type:
- miniature circuit-breaker
- Range Of Product:
- QOU
