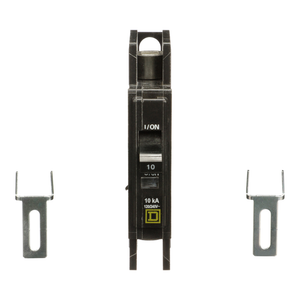

Schneider Electric QOU2101021 Miniature Circuit Breaker 120/240V 10A
Schneider Electric
$414.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QOU unit mount miniature circuit breakers (cable-in/cable-out) are ideal for OEM applications. QOU breakers are one, two or three pole thermal magnetic circuit breakers which provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This two pole QOU miniature circuit breaker is rated as 10A, 120/240VAC. This unit provides 10 kA breaking capacity. A full line of accessories are available for these circuit breakers. The slotted box lugs will accept one 14 AWG to 2 AWG copper or aluminum wire. This unit includes a shunt trip. QOU circuit breakers are UL Listed and CSA Certified.
- Depth:
- 2.95 in
- Awg Gauge:
- AWG 14...AWG 2 aluminium/copper
- Width:
- 2.25 in
- Warranty:
- 18 months
- Halogen Content Performance:
- Halogen free product
- Tightening Torque:
- 45-45 lbf.in (AWG 14...AWG 2)
- Height:
- 4.05 in
- Range Of Product:
- QOU
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 120 V AC || 48 V DC
- Product Certifications:
- UL Listed || CSA || IEC
- Circuit Breaker Application:
- HACR rated
- Toxic Heavy Metal Free:
- Yes
- Circuit Breaker Type:
- standard
- Product Or Component Type:
- miniature circuit-breaker
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile:
- N/A
- Eu Rohs Directive:
- Compliant with Exemptions
- Sustainable Offer Status:
- Green Premium product
- Electrical Connection:
- slotted box lugs, line side || slotted box lugs, load side
- Mercury Free:
- Yes
- Line Rated Current:
- 0.416666666666667
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Rohs Exemption Information:
- Yes
- Mounting Mode:
- unit mount
