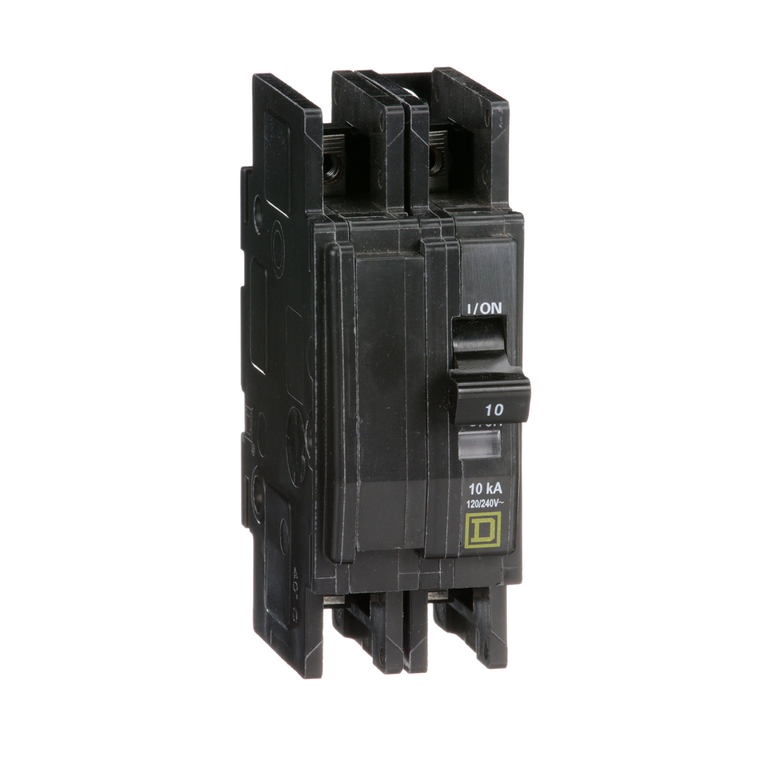

Schneider Electric QOU2105283 Miniature Circuit Breaker 120/240V 10A
Schneider Electric
$134.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric QOU2105283 Miniature Circuit Breaker 120/240V 10A
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

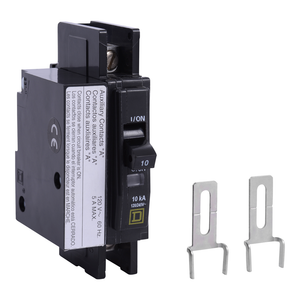

QO and QOU Miniature Circuit Breakers, QOU2105283, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit. Comes with factory installed ring tongue terminal.
- Depth:
- 2.95 in
- Eu Rohs Directive:
- Compliant with Exemptions
- Line Rated Current:
- 0.416666666666667
- Halogen Content Performance:
- Halogen free product
- Product Or Component Type:
- miniature circuit-breaker
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Range Of Product:
- QOU
- Sustainable Offer Status:
- Green Premium product
- Rohs Exemption Information:
- Yes
- Width:
- 1.5 in
- Awg Gauge:
- AWG 14...AWG 2 aluminium/copper
- Circuit Breaker Application:
- HACR rated
- Product Certifications:
- UL Listed || IEC || CSA
- Mounting Mode:
- unit mount
- Toxic Heavy Metal Free:
- Yes
- Mercury Free:
- Yes
- Circuit Breaker Type:
- standard
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 120 V AC || 48 V DC
- Tightening Torque:
- 45-45 lbf.in (AWG 14...AWG 2)
- Electrical Connection:
- ring tongue, line side || ring tongue, load side
- Warranty:
- 18 months
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Height:
- 4.05 in
- Circularity Profile:
- N/A
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
