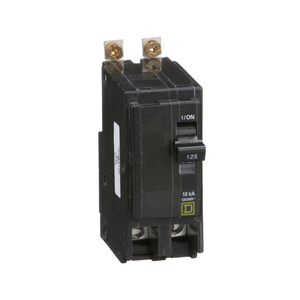

Schneider Electric QOU21251021 Miniature Circuit Breaker 120/240V 125A
Schneider Electric
$641.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric QOU21251021 Miniature Circuit Breaker 120/240V 125A
QOU unit mount miniature circuit breakers (cable-in/cable-out) are ideal for OEM applications. QOU breakers are one, two or three pole thermal magnetic circuit breakers which provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This two pole QOU miniature circuit breaker is rated as 125A, 120/240VAC. This unit provides 10 kA breaking capacity. A full line of accessories are available for these circuit breakers. The slotted box lugs will accept one 12 AWG to 2/0 AWG copper or aluminum wire. This unit includes a shunt trip. QOU circuit breakers are UL Listed and CSA Certified.
- Halogen Content Performance:
- Halogen free product
- Line Rated Current:
- 125 A
- Tightening Torque:
- 45-45 lbf.in (AWG 12...AWG 2/0)
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 120 V AC || 60 V DC
- Height:
- 4.45 in
- Width:
- 2.25 in
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile:
- N/A
- Rohs Exemption Information:
- Yes
- Product Certifications:
- UL Listed || CSA || IEC
- Circuit Breaker Type:
- standard
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Mounting Mode:
- unit mount
- Product Or Component Type:
- miniature circuit-breaker
- Sustainable Offer Status:
- Green Premium product
- Awg Gauge:
- AWG 12...AWG 2/0 aluminium/copper
- Eu Rohs Directive:
- Compliant with Exemptions
- Depth:
- 2.95 in
- Mercury Free:
- Yes
- Electrical Connection:
- slotted box lugs, line side || slotted box lugs, load side
- Range Of Product:
- QOU
- Warranty:
- 18 months
- Circuit Breaker Application:
- HACR rated
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
