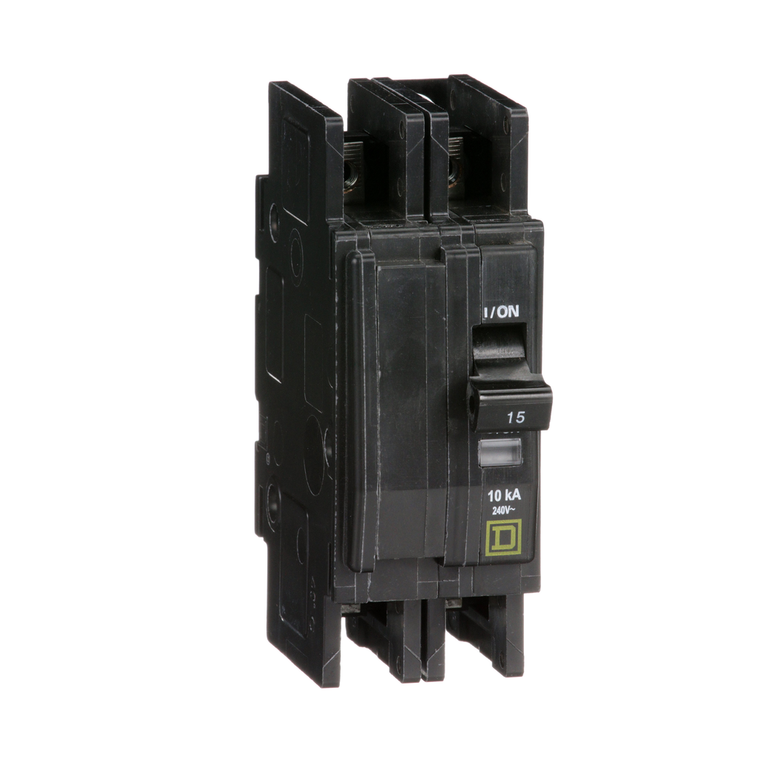

Schneider Electric QOU215H5283 Miniature Circuit Breaker 240V 15A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOU Miniature Circuit Breakers, QOU215H5283, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit. Comes with factory installed ring tongue terminal.
- Mounting Mode:
- unit mount
- Height:
- 4.05 in
- Awg Gauge:
- AWG 14...AWG 2 aluminium/copper
- Line Rated Current:
- 15 A
- Electrical Connection:
- ring tongue, line side || ring tongue, load side
- Width:
- 1.5 in
- Tightening Torque:
- 45-45 lbf.in (AWG 14...AWG 2)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Halogen Content Performance:
- Halogen free product
- Eu Rohs Directive:
- Compliant with Exemptions
- Warranty:
- 18 months
- Product Or Component Type:
- miniature circuit-breaker
- Circuit Breaker Type:
- standard
- [Ue] Rated Operational Voltage:
- 240 V AC
- Range Of Product:
- QOU
- Depth:
- 2.95 in
- Rohs Exemption Information:
- Yes
- Mercury Free:
- Yes
- Product Certifications:
- IEC || UL Listed || CSA
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Circuit Breaker Application:
- HACR rated
- Toxic Heavy Metal Free:
- Yes
- Catalog:
- View
- Datasheet:
- View
