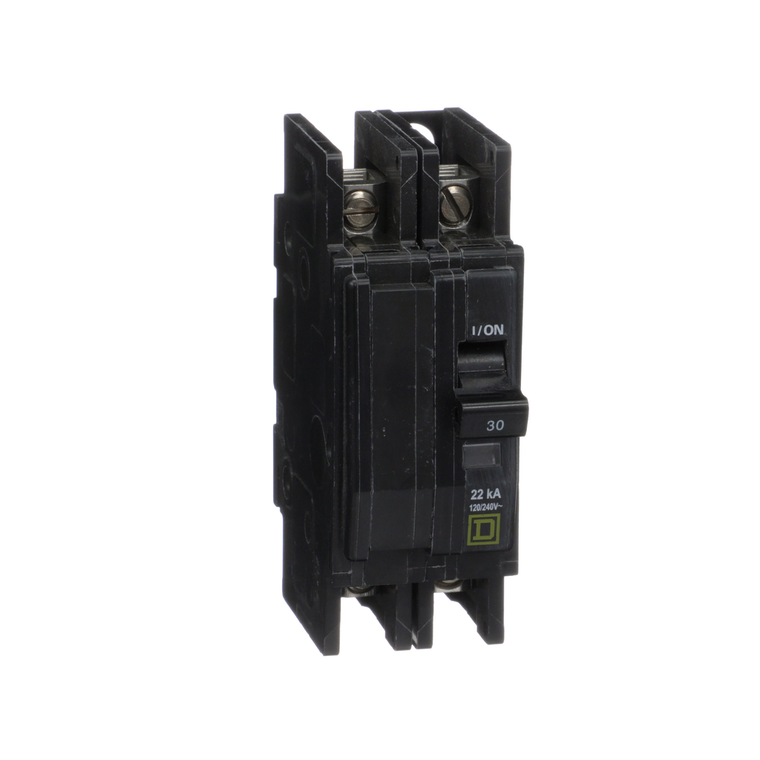

Schneider Electric QOU230VH Miniature Circuit Breaker 120/240V 30A

(No reviews yet) Write a Review

Write a Review

Schneider Electric QOU230VH Miniature Circuit Breaker 120/240V 30A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

QOU230VH

UPC:

785901559894

MPN:

Condition:

New

Mercury Free:

Yes

Circuit Breaker Type:

standard

Eu Rohs Directive:

Compliant with Exemptions

Rohs Exemption Information:

Yes

Depth:

2.95 in

Width:

1.5 in

[Ue] Rated Operational Voltage:

120/240 V AC

Toxic Heavy Metal Free:

Yes

Product Or Component Type:

miniature circuit-breaker

Electrical Connection:

slotted box lugs, line side || slotted box lugs, load side

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Halogen Content Performance:

Halogen free product

Circularity Profile:

N/A

Warranty:

18 months

Sustainable Offer Status:

Green Premium product

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Certifications:

UL Listed || IEC || CSA

Tightening Torque:

45-45 lbf.in (AWG 14...AWG 2)

Circuit Breaker Application:

HACR rated

Awg Gauge:

AWG 14...AWG 2 aluminium/copper

Line Rated Current:

30 A

Height:

4.05 in

Range Of Product:

QOU

Mounting Mode:

unit mount

Brochure:

View

Catalog:

View

Datasheet:

View
