Schneider Electric QOU2405283 Miniature Circuit Breaker 120/240V 40A
Schneider Electric

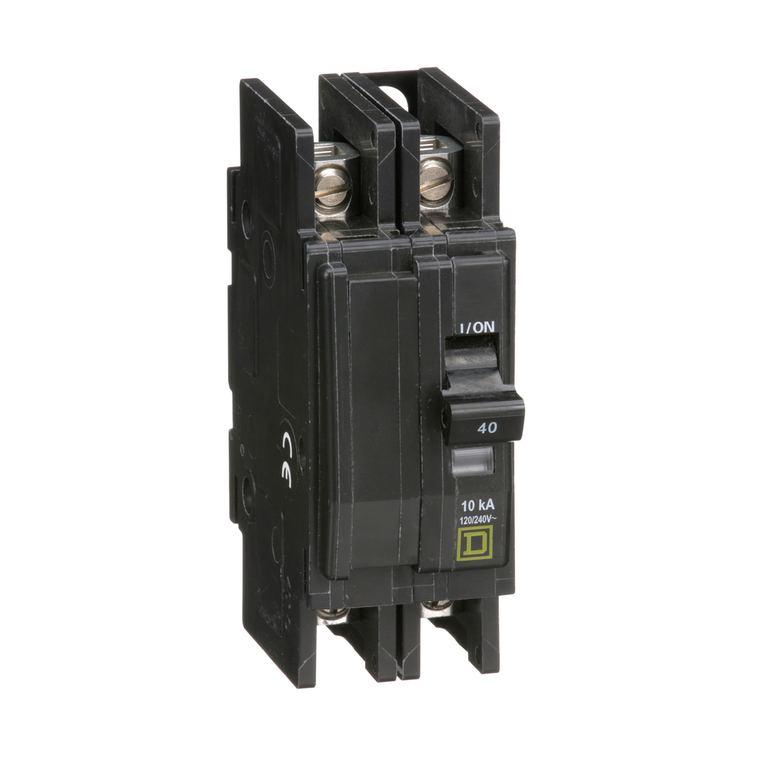

Schneider Electric QOU240 Miniature Circuit Breaker 120/240V 40A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOU Miniature Circuit Breakers, QOU240, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit.
- Tightening Torque:
- 45-45 lbf.in (AWG 14...AWG 2)
- Toxic Heavy Metal Free:
- Yes
- Mercury Free:
- Yes
- Halogen Content Performance:
- Halogen free product
- Eu Rohs Directive:
- Compliant with Exemptions
- Circuit Breaker Type:
- standard
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Mounting Mode:
- unit mount
- Warranty:
- 18 months
- Circuit Breaker Application:
- HACR rated
- Rohs Exemption Information:
- Yes
- Product Or Component Type:
- miniature circuit-breaker
- Width:
- 1.5 in
- Electrical Connection:
- slotted box lugs, line side || slotted box lugs, load side
- Awg Gauge:
- AWG 14...AWG 2 aluminium/copper
- Range Of Product:
- QOU
- Depth:
- 2.95 in
- Product Certifications:
- CSA || UL Listed || IEC
- Circularity Profile:
- N/A
- Height:
- 4.05 in
- Line Rated Current:
- 40 A
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 120 V AC || 48 V DC
- Sustainable Offer Status:
- Green Premium product
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
