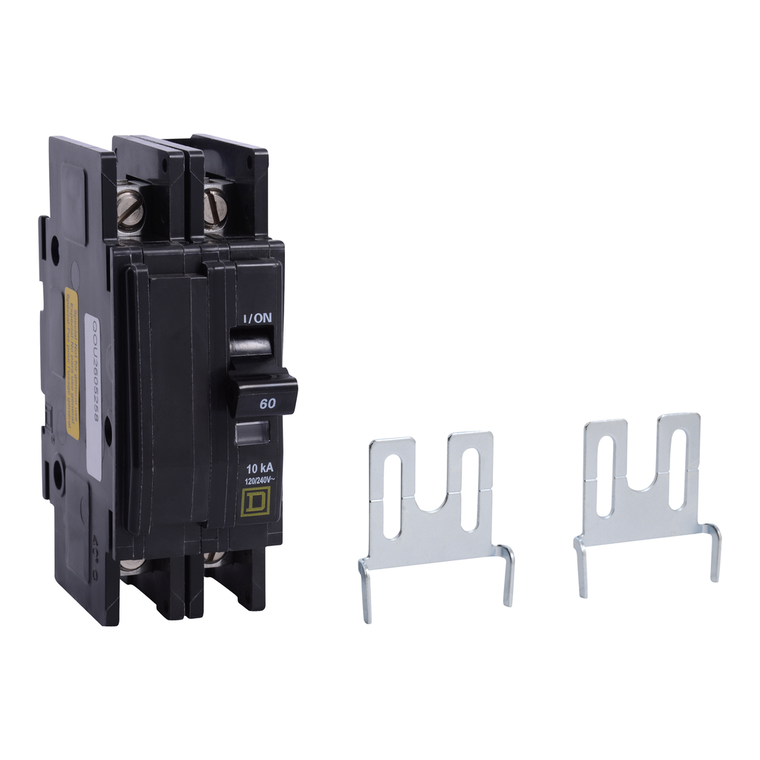

Schneider Electric QOU2605258 Miniature Circuit Breaker 120/240V 60A

(No reviews yet) Write a Review

Write a Review

Schneider Electric QOU2605258 Miniature Circuit Breaker 120/240V 60A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

QOU2605258

UPC:

7.85902E+11

MPN:

Condition:

New

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Warranty:

18 months

Line Rated Current:

60 A

Awg Gauge:

AWG 14...AWG 2 aluminium/copper

[Ue] Rated Operational Voltage:

120/240 V AC || 120 V AC || 48 V DC

Depth:

2.95 in

Electrical Connection:

box lugs, line side || quick connect terminals, load side

Circularity Profile:

N/A

Range Of Product:

QOU

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Eu Rohs Directive:

Compliant with Exemptions

Height:

4.05 in

Product Or Component Type:

miniature circuit-breaker

Halogen Content Performance:

Halogen free product

Sustainable Offer Status:

Green Premium product

Circuit Breaker Type:

standard

Rohs Exemption Information:

Yes

Mounting Mode:

unit mount

Product Certifications:

CSA || IEC || UL Listed

Toxic Heavy Metal Free:

Yes

Width:

1.5 in

Circuit Breaker Application:

HACR rated

Mercury Free:

Yes

Tightening Torque:

45-45 lbf.in (AWG 14...AWG 2)
