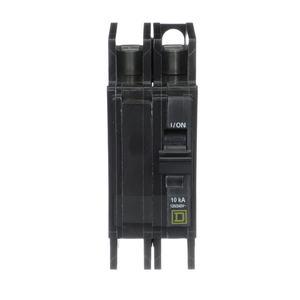

Schneider Electric QOU260B Miniature Circuit Breaker 120/240V 60A Pack of 20

Schneider Electric QOU260B Miniature Circuit Breaker 120/240V 60A 0

Schneider Electric
SKU:
QOU260B
|
UPC:
785901121091
Availability:
Factory stock
$82.03
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
QO and QOU Miniature Circuit Breakers, QOU260B, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit. Distributes in a Bulk packing.
Additional Information
Sustainable Offer Status:
Green Premium product
Warranty:
18 months
Range Of Product:
QOU
Line Rated Current:
60 A
Width:
1.5 in
Mounting Mode:
unit mount
Circuit Breaker Type:
standard
Halogen Content Performance:
Halogen free product
Type Of Packing:
bulk
Awg Gauge:
AWG 14...AWG 2 aluminium/copper
[Ue] Rated Operational Voltage:
120/240 V AC || 120 V AC || 48 V DC
Circuit Breaker Application:
HACR rated
Tightening Torque:
45-45 lbf.in (AWG 14...AWG 2)
Rohs Exemption Information:
Yes
Product Certifications:
IEC || UL Listed || CSA
Toxic Heavy Metal Free:
Yes
Electrical Connection:
slotted box lugs, line side || slotted box lugs, load side
Circularity Profile:
N/A
Mercury Free:
Yes
Height:
4.05 in
Depth:
2.95 in
Eu Rohs Directive:
Compliant with Exemptions
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Or Component Type:
miniature circuit-breaker
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Catalog:
View
Datasheet:
View
