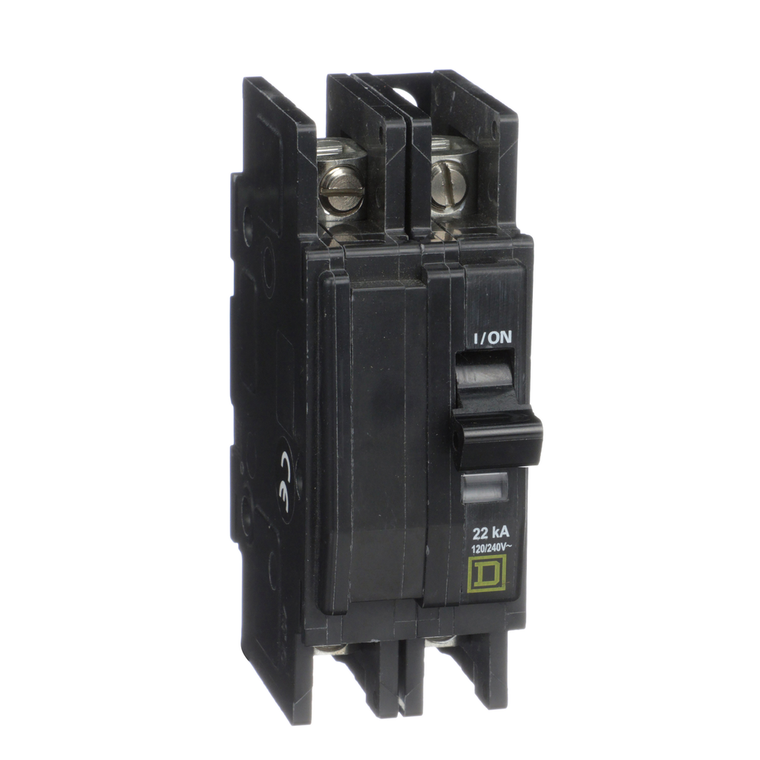

Schneider Electric QOU260VH Miniature Circuit Breaker 120/240V 60A

Schneider Electric QOU260VH Miniature Circuit Breaker 120/240V 60A

Schneider Electric
SKU:
QOU260VH
|
UPC:
785901631217
Availability:
Contact us to confirm availability and lead times.
$204.12
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
QOU unit mount miniature circuit breakers (cable-in/cable-out) are ideal for OEM applications. QOU breakers are one, two or three pole thermal magnetic circuit breakers which provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This two pole QOU miniature circuit breaker is rated as 60A, 120/240VAC. This circuit breaker provides 22 kA breaking capacity. A full line of accessories are available for these circuit breakers. The slotted box lugs will accept one 14 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a maximum height of 4.05 inches, a maximum width of 1.5 inches and maximum depth of 2.95 inches. QOU circuit breakers are UL Listed and CSA Certified.
Additional Information
Mercury Free:
Yes
Circuit Breaker Type:
standard
Warranty:
18 months
Eu Rohs Directive:
Compliant with Exemptions
Halogen Content Performance:
Halogen free product
Height:
4.05 in
Range Of Product:
QOU
Toxic Heavy Metal Free:
Yes
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Product Certifications:
CSA || IEC || UL Listed
Product Or Component Type:
miniature circuit-breaker
[Ue] Rated Operational Voltage:
120/240 V AC
Electrical Connection:
slotted box lugs, line side || slotted box lugs, load side
Depth:
2.95 in
Width:
1.5 in
Mounting Mode:
unit mount
Awg Gauge:
AWG 14...AWG 2 aluminium/copper
Line Rated Current:
60 A
Tightening Torque:
45-45 lbf.in (AWG 14...AWG 2)
Circuit Breaker Application:
HACR rated
Sustainable Offer Status:
Green Premium product
Circularity Profile:
N/A
Rohs Exemption Information:
Yes
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
