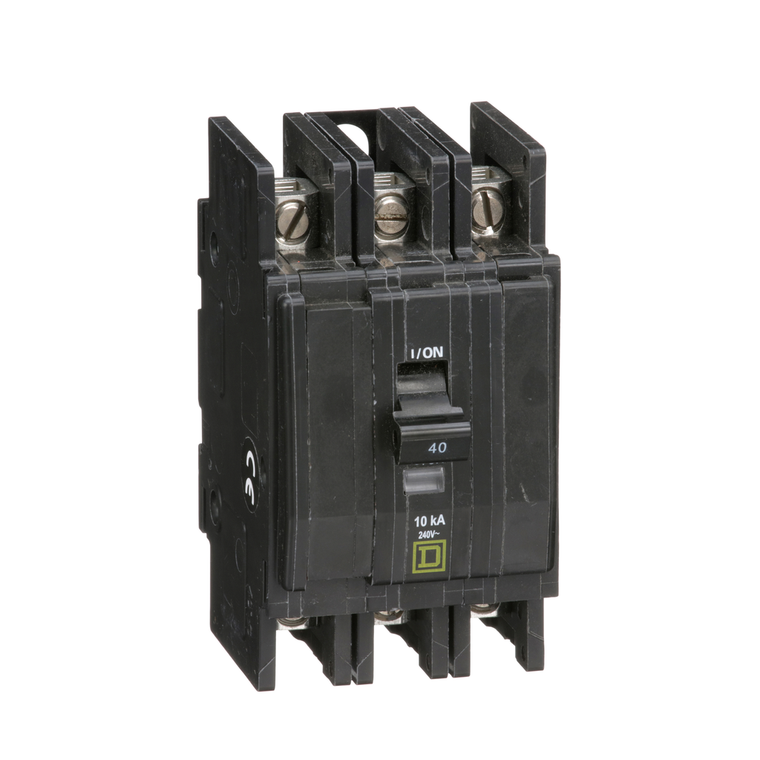

Schneider Electric QOU340 Miniature Circuit Breaker 240V 40A
Schneider Electric
$307.80
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOU Miniature Circuit Breakers, QOU340, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit.
- Height:
- 4.05 in
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Mounting Mode:
- unit mount
- Tightening Torque:
- 45-45 lbf.in (AWG 14...AWG 2)
- Halogen Content Performance:
- Halogen free product
- Sustainable Offer Status:
- Green Premium product
- Circularity Profile:
- N/A
- Width:
- 2.25 in
- Depth:
- 2.95 in
- Eu Rohs Directive:
- Compliant with Exemptions
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Product Certifications:
- UL Listed || CSA || IEC
- Circuit Breaker Type:
- standard
- Circuit Breaker Application:
- HACR rated
- Rohs Exemption Information:
- Yes
- Product Or Component Type:
- miniature circuit-breaker
- Electrical Connection:
- slotted box lugs, line side || slotted box lugs, load side
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 240 V AC || 120 V AC || 48 V DC
- Awg Gauge:
- AWG 14...AWG 2 aluminium/copper
- Range Of Product:
- QOU
- Line Rated Current:
- 40 A
- Warranty:
- 18 months
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
