Schneider Electric QOB3405238 Miniature Circuit Breaker 240V 40A
Schneider Electric

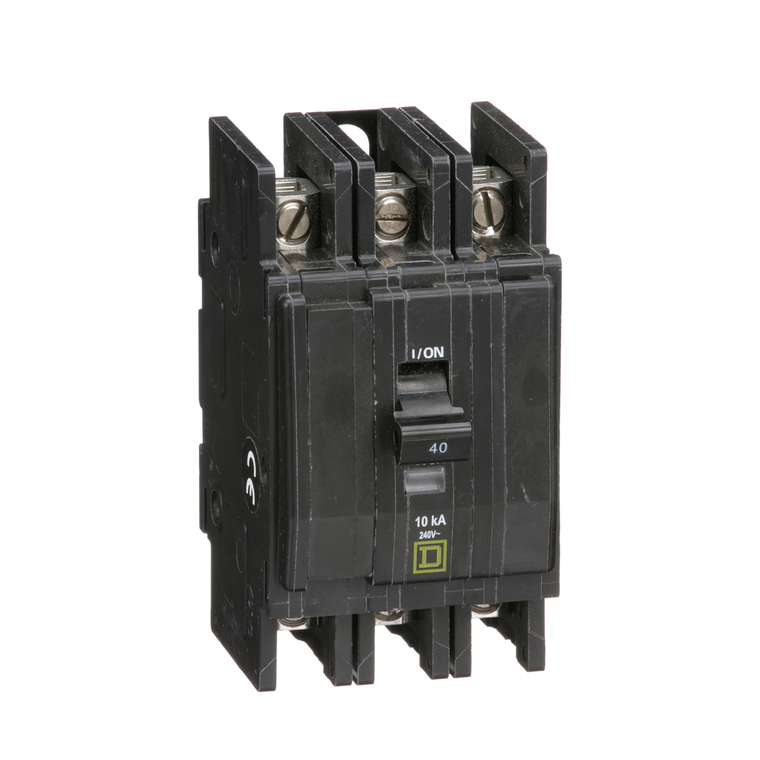

Schneider Electric QOU340B Miniature Circuit Breaker 240V 40A Pack of 12
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOU Miniature Circuit Breakers, QOU340B, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit. Distributes in a Bulk packing.
- Sustainable Offer Status:
- Green Premium product
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 240 V AC || 120 V AC || 48 V DC
- Warranty:
- 18 months
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Mounting Mode:
- unit mount
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Tightening Torque:
- 45-45 lbf.in (AWG 14...AWG 2)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Circuit Breaker Application:
- HACR rated
- Circuit Breaker Type:
- standard
- Product Or Component Type:
- miniature circuit-breaker
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Circularity Profile:
- N/A
- Halogen Content Performance:
- Halogen free product
- Product Certifications:
- UL Listed || CSA || IEC
- Type Of Packing:
- bulk
- Width:
- 2.25 in
- Depth:
- 2.95 in
- Awg Gauge:
- AWG 14...AWG 2 aluminium/copper
- Line Rated Current:
- 40 A
- Height:
- 4.05 in
- Electrical Connection:
- slotted box lugs, line side || slotted box lugs, load side
- Eu Rohs Directive:
- Compliant with Exemptions
- Range Of Product:
- QOU
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
