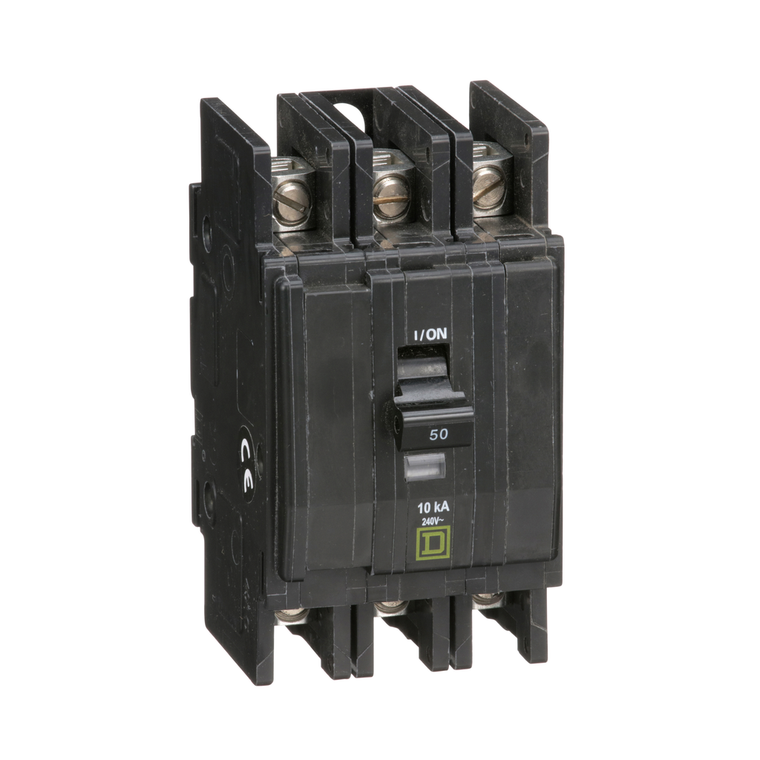

Schneider Electric QOU350 Miniature Circuit Breaker 240V 50A
Schneider Electric
$307.80
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric QOU350 Miniature Circuit Breaker 240V 50A
QO and QOU Miniature Circuit Breakers, QOU350, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers provide a means to manually open a circuit.
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Circuit Breaker Type:
- standard
- Mercury Free:
- Yes
- Range Of Product:
- QOU
- Product Or Component Type:
- miniature circuit-breaker
- Mounting Mode:
- unit mount
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Circuit Breaker Application:
- HACR rated
- Sustainable Offer Status:
- Green Premium product
- Height:
- 4.05 in
- Rohs Exemption Information:
- Yes
- Width:
- 2.25 in
- Electrical Connection:
- slotted box lugs, line side || slotted box lugs, load side
- Depth:
- 2.95 in
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 240 V AC || 120 V AC || 48 V DC
- Tightening Torque:
- 45-45 lbf.in (AWG 14...AWG 2)
- Awg Gauge:
- AWG 14...AWG 2 aluminium/copper
- Eu Rohs Directive:
- Compliant with Exemptions
- Warranty:
- 18 months
- Line Rated Current:
- 50 A
- Product Certifications:
- CSA || IEC || UL Listed
- Circularity Profile:
- N/A
- Halogen Content Performance:
- Halogen free product
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
