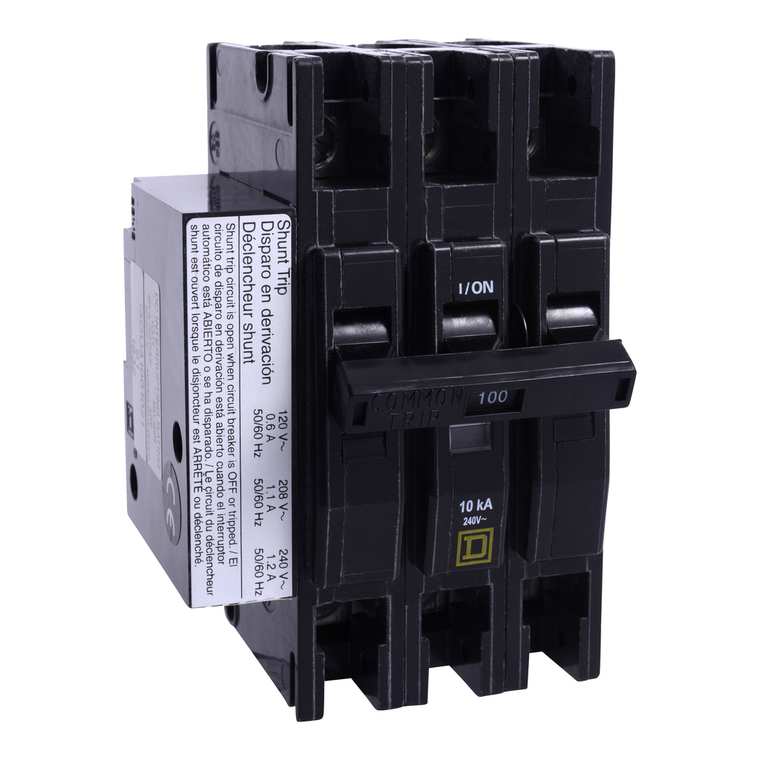

Schneider Electric QOU3501021 Miniature Circuit Breaker 240V 50A

(No reviews yet) Write a Review
SKU:
QOU3501021
UPC:
785901518655
Condition:
New
Product Or Component Type:
miniature circuit-breaker
Rohs Exemption Information:
Yes
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Tightening Torque:
45-45 lbf.in (AWG 14...AWG 2)
Eu Rohs Directive:
Compliant with Exemptions
California Proposition 65:
WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Height:
4.05 in
Electrical Connection:
slotted box lugs, line side || slotted box lugs, load side
Mounting Mode:
unit mount
Circuit Breaker Application:
HACR rated
Range Of Product:
QOU
Mercury Free:
Yes
Awg Gauge:
AWG 14...AWG 2 aluminium/copper
Sustainable Offer Status:
Green Premium product
Depth:
2.95 in
Halogen Content Performance:
Halogen free product
Line Rated Current:
50 A
Circularity Profile:
N/A
Width:
3 in
Product Certifications:
UL Listed || IEC || CSA
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Warranty:
18 months
Circuit Breaker Type:
standard
[Ue] Rated Operational Voltage:
120/240 V AC || 240 V AC || 120 V AC || 48 V DC
Brochure:
View
Catalog:
View
Datasheet:
View
$474.00

Description

QOU unit mount miniature circuit breakers (cable-in/cable-out) are ideal for OEM applications. QOU breakers are one, two or three pole thermal magnetic circuit breakers which provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This three pole QOU miniature circuit breaker is rated as 50A, 240VAC. This unit provides 10 kA breaking capacity. A full line of accessories are available for these circuit breakers. The slotted box lugs will accept one 14 AWG to 2 AWG copper or aluminum wire. This unit includes a shunt trip. QOU circuit breakers are UL Listed and CSA Certified.
