Schneider Electric QOUQ340 Miniature Circuit Breaker 240V 40A
Schneider Electric
$311.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

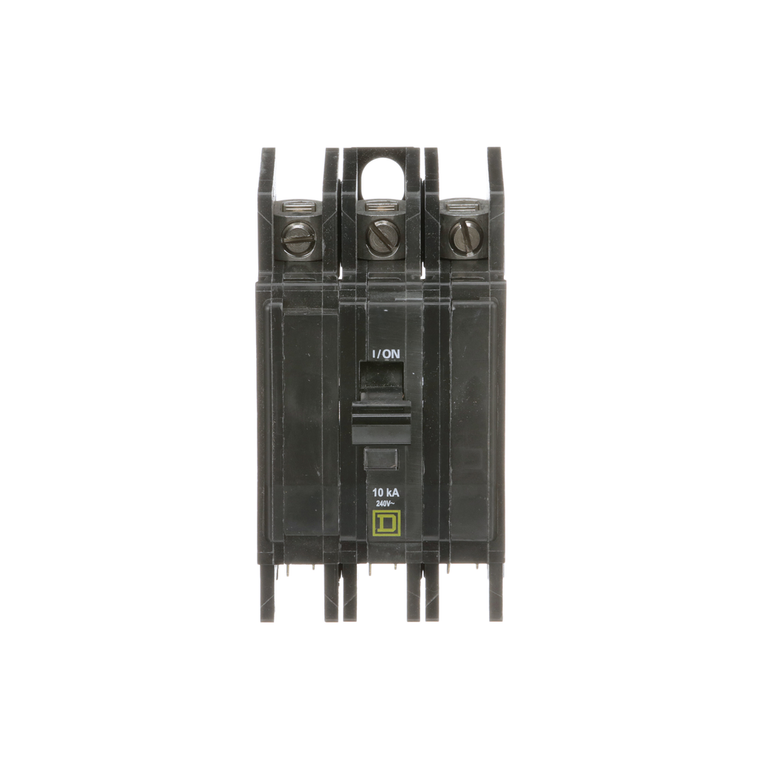

Schneider Electric QOUQ340 Miniature Circuit Breaker 240V 40A
QOU unit mount miniature circuit breakers (cable-in/cable-out) are ideal for OEM applications. QOU breakers are one, two or three pole thermal magnetic circuit breakers which provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This three pole QOU miniature circuit breaker is rated as 40A, 240 VAC. This circuit breaker provides 10 kA breaking capacity. A full line of accessories are available for these circuit breakers. The factory installed quick connects will accept one 14 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a maximum height of 4.05 inches, a maximum width of 2.25 inches and maximum depth of 2.95 inches. QOU circuit breakers are UL Listed and CSA Certified.
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 240 V AC || 120 V AC || 48 V DC
- Circuit Breaker Application:
- HACR rated
- Circuit Breaker Type:
- standard
- Product Or Component Type:
- miniature circuit-breaker
- Halogen Content Performance:
- Halogen free product
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Height:
- 4.05 in
- Rohs Exemption Information:
- Yes
- Width:
- 2.25 in
- Mercury Free:
- Yes
- Electrical Connection:
- slotted box lugs, line side || slotted box lugs, load side
- Mounting Mode:
- unit mount
- Line Rated Current:
- 40 A
- Circularity Profile:
- N/A
- Range Of Product:
- QOU
- Eu Rohs Directive:
- Compliant with Exemptions
- Tightening Torque:
- 45-45 lbf.in (AWG 14...AWG 2)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Warranty:
- 18 months
- Awg Gauge:
- AWG 14...AWG 2 aluminium/copper
- Product Certifications:
- IEC || CSA || UL Listed
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Depth:
- 2.95 in
- Sustainable Offer Status:
- Green Premium product
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
