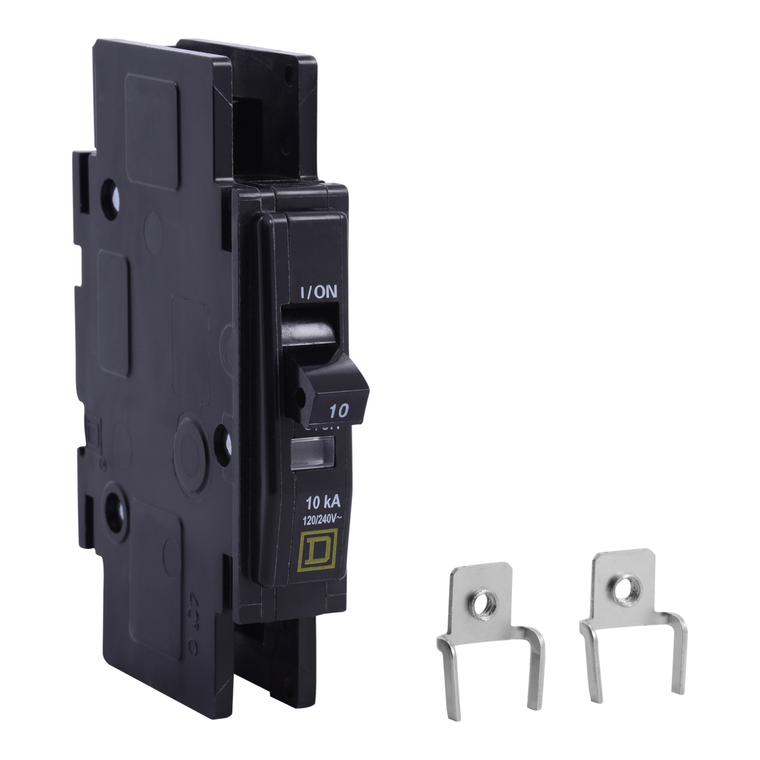

Schneider Electric QOUR1153100 Miniature Circuit Breaker 120/240V 15A
SKU:
QOUR1153100
UPC:
3606486146873
MPN:
Condition:
New
Product Or Component Type:
miniature circuit-breaker
Range Of Product:
QOU
Toxic Heavy Metal Free:
Yes
Height:
4.05 in
Product Certifications:
CSA || UL Listed || IEC
Tightening Torque:
45-45 lbf.in (AWG 14...AWG 2)
Line Rated Current:
15 A
Width:
0.75 in
Warranty:
18 months
Eu Rohs Directive:
Compliant with Exemptions
Mounting Mode:
unit mount
[Ue] Rated Operational Voltage:
120/240 V AC || 120 V AC || 48 V DC
Rohs Exemption Information:
Yes
Sustainable Offer Status:
Green Premium product
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Circuit Breaker Type:
standard
Electrical Connection:
slotted box lugs, line side || slotted box lugs, load side
Depth:
2.95 in
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Mercury Free:
Yes
Circularity Profile:
N/A
Circuit Breaker Application:
HACR rated
Halogen Content Performance:
Halogen free product
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
QO and QOU Miniature Circuit Breakers, QOU215, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems...
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle...
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle...
QOU unit mount miniature circuit breakers (cable-in/cable-out) are ideal for OEM applications. QOU breakers are one, two or three pole thermal magnetic circuit breakers which provide overcurrent...
