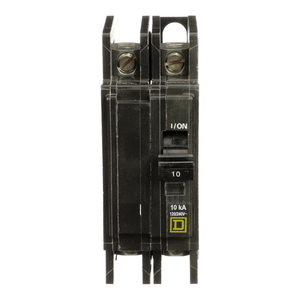

Schneider Electric QOUR2103100 Miniature Circuit Breaker 120/240V 10A
QOU unit mount miniature circuit breakers (cable-in/cable-out) are ideal for OEM applications. QOU breakers are one, two or three pole thermal magnetic circuit breakers which provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This two pole QOU miniature circuit breaker is rated as 10A, 240 VAC. This circuit breaker provides 10 kA breaking capacity. A full line of accessories are available for these circuit breakers. This breaker has tapped mounting feet. The rotatable lugs will accept one 14 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a maximum height of 4.05 inches, a maximum width of 1.50 inches and maximum depth of 2.95 inches. QOU circuit breakers are UL Listed and CSA Certified.
- Range Of Product:
- QOU
- Halogen Content Performance:
- Halogen free product
- Toxic Heavy Metal Free:
- Yes
- Eu Rohs Directive:
- Compliant with Exemptions
- Depth:
- 2.95 in
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 120 V AC || 48 V DC
- Tightening Torque:
- 45-45 lbf.in (AWG 14...AWG 2)
- Circularity Profile:
- N/A
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Height:
- 4.05 in
- Circuit Breaker Application:
- HACR rated
- Product Certifications:
- CSA || IEC || UL Listed
- Warranty:
- 18 months
- Electrical Connection:
- slotted box lugs, line side || slotted box lugs, load side
- Sustainable Offer Status:
- Green Premium product
- Circuit Breaker Type:
- standard
- Width:
- 1.5 in
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Line Rated Current:
- 0.416666666666667
- Product Or Component Type:
- miniature circuit-breaker
- Mounting Mode:
- unit mount
- Rohs Exemption Information:
- Yes
- Awg Gauge:
- AWG 14...AWG 2 aluminium/copper
