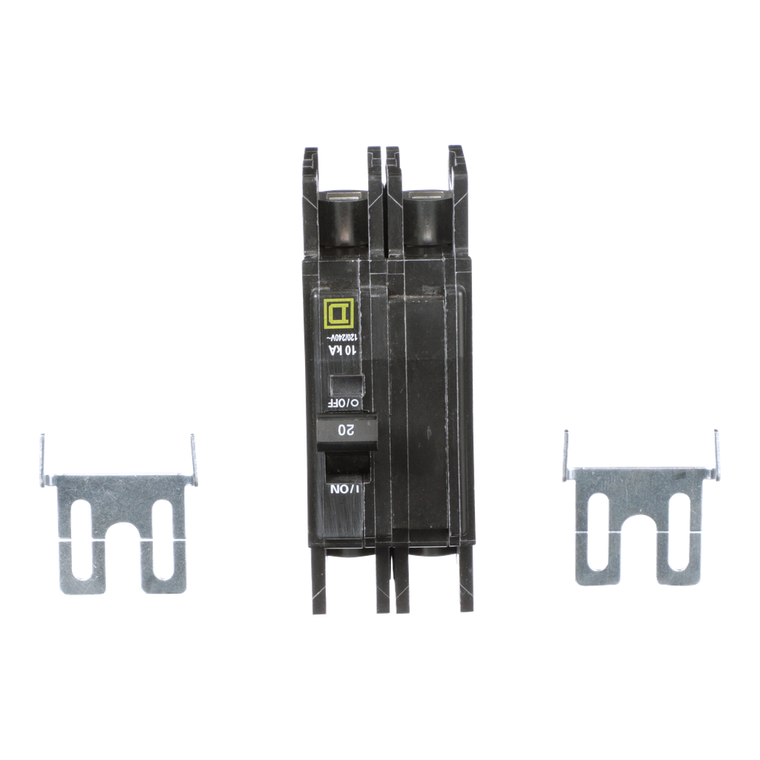

Schneider Electric QOUR220 Miniature Circuit Breaker 120/240V 20A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QOUR miniature molded case circuit breakers are intended for use in residential and commercial applications. These circuit breakers are unit mount thermal magnetic circuit breakers. QOU breakers will automatically open a circuit under overload or short circuit conditions. They have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped. You can flush mount, surface mount or DIN rail mount these circuit breakers. This 2 pole QOUR miniature circuit breaker is rated as 20 A at 120/240 VAC. This unit provides 10 kA breaking capacity. For added convenience, this circuit breaker has reversible lugs. This permits the breaker to be flush mounted and then wired from the back. They are tested and listed according to UL Standard 489 and CSA Standard C22.2 No. 5-02 for circuit breakers. QOU circuit breakers are UL Listed under UL File E84967 DIVQ and are CSA Certified.
- Product Or Component Type:
- miniature circuit-breaker
- Toxic Heavy Metal Free:
- Yes
- Circuit Breaker Application:
- HACR rated
- Circuit Breaker Type:
- standard
- Eu Rohs Directive:
- Compliant with Exemptions
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile:
- N/A
- Line Rated Current:
- 20 A
- Electrical Connection:
- slotted box lugs, line side || slotted box lugs, load side
- Depth:
- 2.95 in
- Mounting Mode:
- unit mount
- Width:
- 1.5 in
- Range Of Product:
- QOU
- Sustainable Offer Status:
- Green Premium product
- Mercury Free:
- Yes
- Product Certifications:
- CSA || IEC || UL Listed
- Rohs Exemption Information:
- Yes
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 120 V AC || 48 V DC
- Height:
- 4.05 in
- Halogen Content Performance:
- Halogen free product
- Awg Gauge:
- AWG 14...AWG 2 aluminium/copper
- Tightening Torque:
- 45-45 lbf.in (AWG 14...AWG 2)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Warranty:
- 18 months
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
Related Products
-
-
Schneider Electric QOB120VH1200 Miniature Circuit Breaker 120/240V 20A
Schneider Electric
-

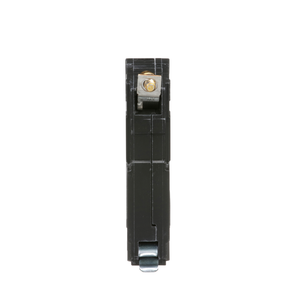

Schneider Electric QHB120 Miniature Circuit Breaker 120/240V 20A
