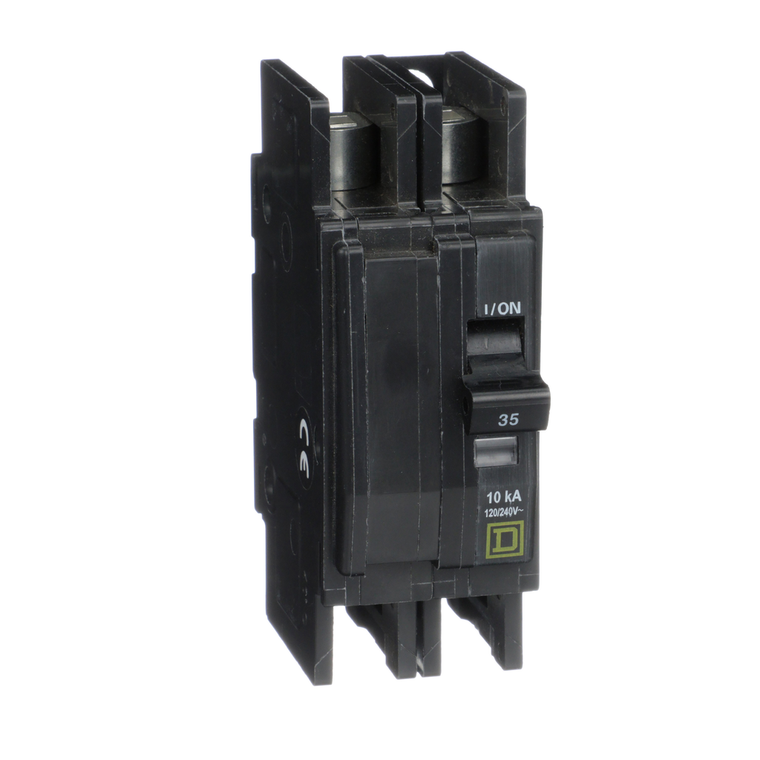

Schneider Electric QOUR235 Miniature Circuit Breaker 120/240V 35A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOU Miniature Circuit Breakers, QOUR235, is ideal for OEM applications. Equipped with Rotated fixing lug QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers provide a means to manually open a circuit.
- Warranty:
- 18 months
- Height:
- 4.05 in
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Awg Gauge:
- AWG 14...AWG 2 aluminium/copper
- Tightening Torque:
- 45-45 lbf.in (AWG 14...AWG 2)
- Circuit Breaker Application:
- HACR rated
- Toxic Heavy Metal Free:
- Yes
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive:
- Compliant with Exemptions
- Circularity Profile:
- N/A
- Depth:
- 2.95 in
- Electrical Connection:
- slotted box lugs, line side || slotted box lugs, load side
- Halogen Content Performance:
- Halogen free product
- Mercury Free:
- Yes
- Circuit Breaker Type:
- standard
- Product Or Component Type:
- miniature circuit-breaker
- Rohs Exemption Information:
- Yes
- Width:
- 1.5 in
- Sustainable Offer Status:
- Green Premium product
- Product Certifications:
- UL Listed || IEC || CSA
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 120 V AC || 48 V DC
- Range Of Product:
- QOU
- Mounting Mode:
- unit mount
- Line Rated Current:
- 35 A
- Catalog:
- View
- Datasheet:
- View
