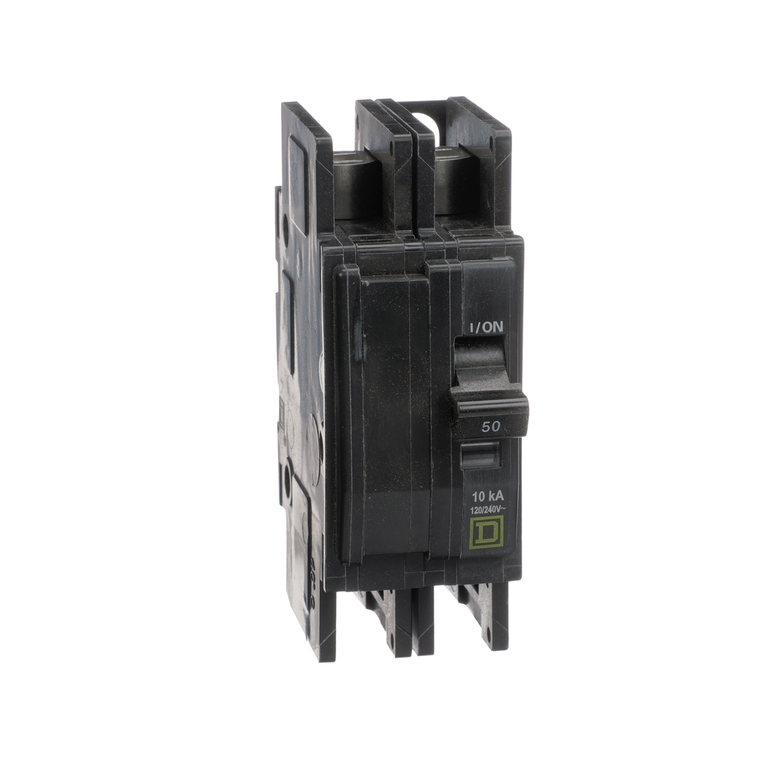

Schneider Electric QOUR250 Miniature Circuit Breaker 120/240V 50A
Schneider Electric
$104.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOU Miniature Circuit Breakers, QOUR250, is ideal for OEM applications. Equipped with Rotated fixing lug QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers provide a means to manually open a circuit.
- Sustainable Offer Status:
- Green Premium product
- Line Rated Current:
- 50 A
- Depth:
- 2.95 in
- Mercury Free:
- Yes
- Toxic Heavy Metal Free:
- Yes
- Warranty:
- 18 months
- Range Of Product:
- QOU
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Product Certifications:
- CSA || UL Listed || IEC
- Tightening Torque:
- 45-45 lbf.in (AWG 14...AWG 2)
- Height:
- 4.05 in
- Awg Gauge:
- AWG 14...AWG 2 aluminium/copper
- Eu Rohs Directive:
- Compliant with Exemptions
- Product Or Component Type:
- miniature circuit-breaker
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Width:
- 1.5 in
- Mounting Mode:
- unit mount
- Circuit Breaker Type:
- standard
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 120 V AC || 48 V DC
- Rohs Exemption Information:
- Yes
- Circuit Breaker Application:
- HACR rated
- Circularity Profile:
- N/A
- Electrical Connection:
- slotted box lugs, line side || slotted box lugs, load side
- Halogen Content Performance:
- Halogen free product
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
