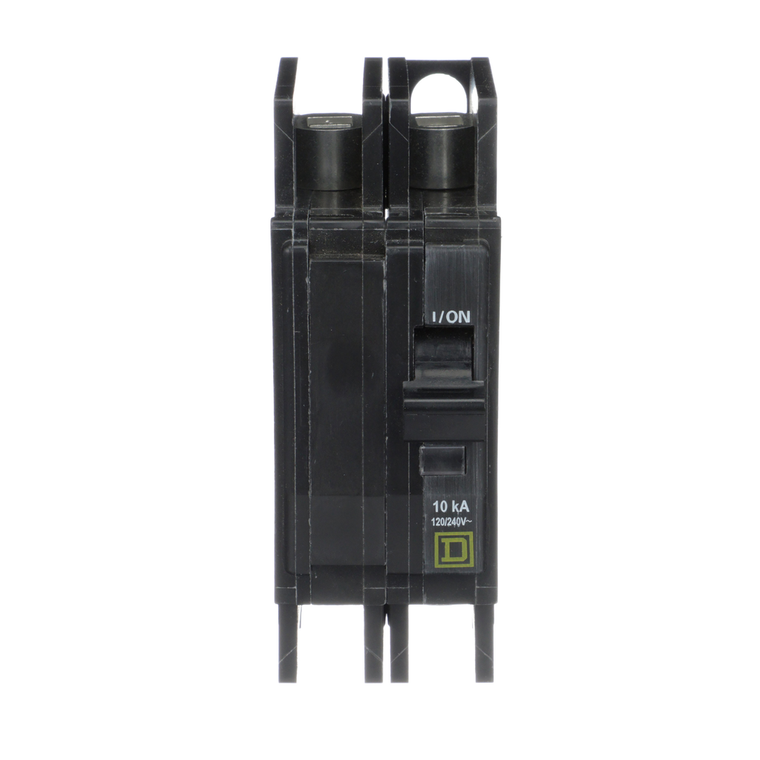

Schneider Electric QOUR260 Miniature Circuit Breaker 120/240V 60A
Schneider Electric
$104.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QOU unit mount miniature circuit breakers (cable-in/cable-out) are ideal for OEM applications. QOU breakers are one, two or three pole thermal magnetic circuit breakers which provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This two pole QOU miniature circuit breaker is rated as 60A, 240 VAC. This circuit breaker provides 10 kA breaking capacity. A full line of accessories are available for these circuit breakers. The rotatable lugs will accept one 14 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a maximum height of 4.05 inches, a maximum width of 1.50 inches and maximum depth of 2.95 inches. QOU circuit breakers are UL Listed and CSA Certified.
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 120 V AC || 48 V DC
- Warranty:
- 18 months
- Height:
- 4.05 in
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Circuit Breaker Type:
- standard
- Circularity Profile:
- N/A
- Range Of Product:
- QOU
- Eu Rohs Directive:
- Compliant with Exemptions
- Electrical Connection:
- slotted box lugs, line side || slotted box lugs, load side
- Awg Gauge:
- AWG 14...AWG 2 aluminium/copper
- Halogen Content Performance:
- Halogen free product
- Mounting Mode:
- unit mount
- Product Or Component Type:
- miniature circuit-breaker
- Toxic Heavy Metal Free:
- Yes
- Line Rated Current:
- 60 A
- Tightening Torque:
- 45-45 lbf.in (AWG 14...AWG 2)
- Sustainable Offer Status:
- Green Premium product
- Depth:
- 2.95 in
- Rohs Exemption Information:
- Yes
- Mercury Free:
- Yes
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Circuit Breaker Application:
- HACR rated
- Width:
- 1.5 in
- Product Certifications:
- UL Listed || CSA || IEC
