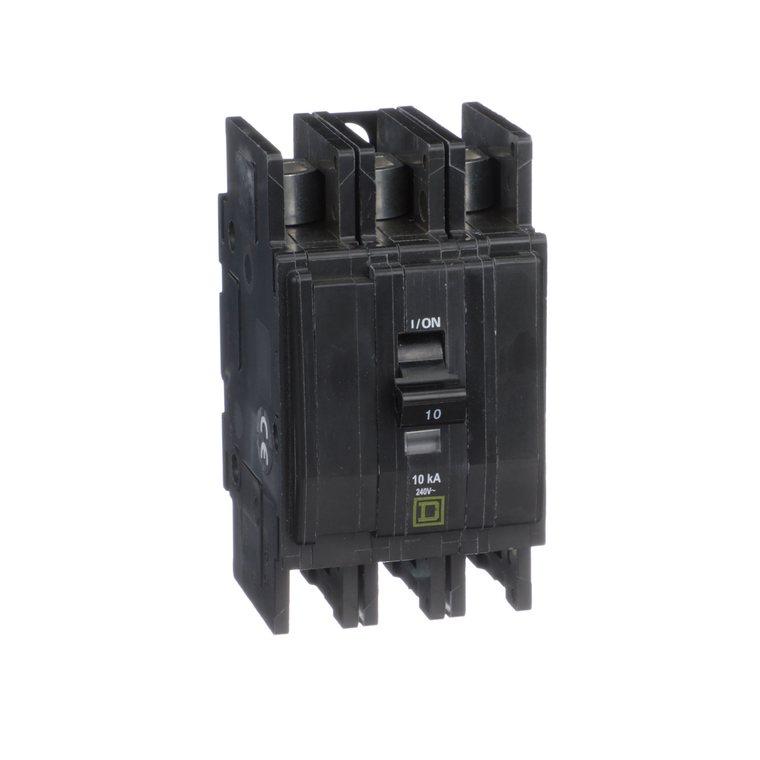

Schneider Electric QOUR310B Miniature Circuit Breaker 240V 10A Pack of 12
Schneider Electric
$4,104.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
QO and QOU Miniature Circuit Breakers, QOUR310B, is ideal for OEM applications. Equipped with Rotated fixing lug QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers provide a means to manually open a circuit. Distributes in a Bulk packing.
- Electrical Connection:
- slotted box lugs, line side || slotted box lugs, load side
- Range Of Product:
- QOU
- Sustainable Offer Status:
- Green Premium product
- Circuit Breaker Application:
- HACR rated
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Awg Gauge:
- AWG 14...AWG 2 aluminium/copper
- Toxic Heavy Metal Free:
- Yes
- Height:
- 4.05 in
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Line Rated Current:
- 0.416666666666667
- Halogen Content Performance:
- Halogen free product
- Depth:
- 2.95 in
- Type Of Packing:
- bulk
- Product Or Component Type:
- miniature circuit-breaker
- Tightening Torque:
- 45-45 lbf.in (AWG 14...AWG 2)
- Warranty:
- 18 months
- Product Certifications:
- IEC || UL Listed || CSA
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 240 V AC || 120 V AC || 48 V DC
- Circularity Profile:
- N/A
- Mounting Mode:
- unit mount
- Eu Rohs Directive:
- Compliant with Exemptions
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Circuit Breaker Type:
- standard
- Width:
- 2.25 in
