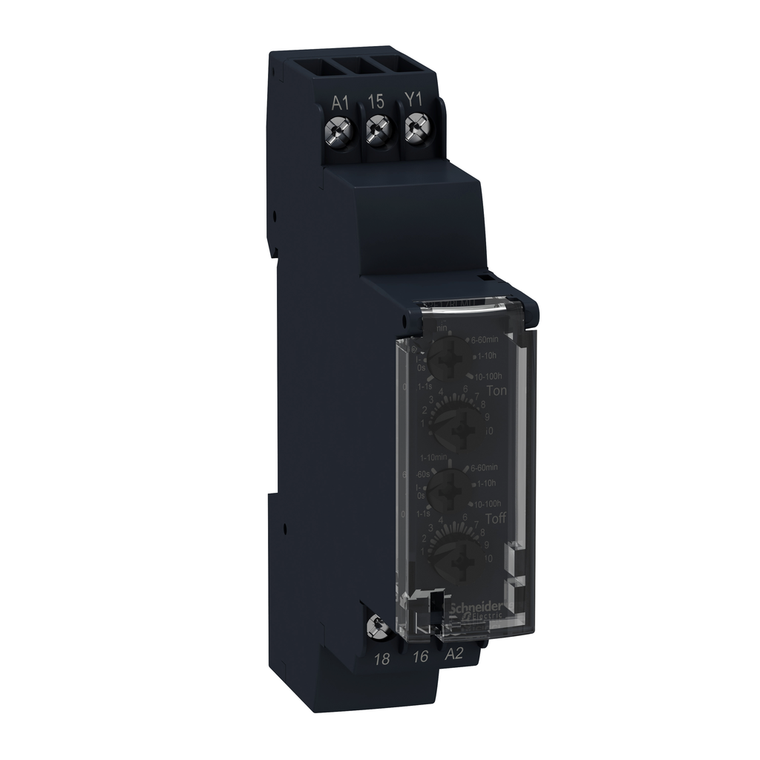

Schneider Electric RE17RLJU Flashing Timer

Schneider Electric RE17RLJU Flashing Timer

Schneider Electric
SKU:
RE17RLJU
|
UPC:
3606480552717
Availability:
Contact us to confirm availability and lead times.
$53.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony RE17R timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 8A, is 17.5mm wide and can be supplied with 12V AC/DC." "It also has 1 changeover contact SPDT (single pole double throw)." "It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device." "It also offers a sealable cover, simple and precise settings with rotary trimmers." "Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC." 0 0 0 0 0 0 0 0 0 0 0
Additional Information
Input Voltage:
5 V
Housing Material:
self-extinguishing
Control Type:
selector switch front panel
Ip Degree Of Protection:
IP20 IEC 60529 terminal block) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)
Setting Accuracy Of Time Delay:
+/- 10 % of full scale 25 °C IEC 61812-1
Height:
90 mm
Range Of Product:
Harmony Timer Relays
Time Delay Type:
asymmetrical flashing
Tightening Torque:
0.6-1 N.m IEC 60947-1
Functionality:
asymmetrical flashing timer
Mechanical Durability:
10000000 cycles
China Rohs Regulation:
X
Contacts Material:
cadmium free
Sustainable Offer Status:
Green Premium product
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Storage:
-30-60 °C
Time Delay Range:
6...60 min || 1...10 h || 6...60 s || 1...10 s || 10...100 h || 0.1...1 s || 1...10 min
Relative Humidity:
93-93 % without condensation IEC 60068-2-30
Environmental Disclosure:
ENVPEP121117EN
Electrical Durability:
100000 cycles resistive 8 A 250 V AC
Depth:
72 mm
Mounting Support:
35 mm DIN rail conforming to IEC 60715
Insulation Resistance:
100 MOhm 500 V DC IEC 60664-1
Repeat Accuracy:
+/- 0.5 % IEC 61812-1
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Dielectric Strength:
2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
Ambient Air Temperature For Operation:
-20-60 °C
Breaking Capacity:
2000 VA
Operating Rate In Hz:
10 Hz
[Us] Rated Supply Voltage:
12 V AC/DC 50/60 Hz
Reset Time:
120 ms on de-energisation typical
Nominal Output Current:
0.333333333333333
Product Or Component Type:
dual function relay
On-Load Factor:
1
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Temperature Drift:
+/- 0.05 %/°C
Minimum Switching Current:
10 mA 5 V DC
Contacts Type And Composition:
1 C/O
Maximum Delay Response:
100 ms
Safety Reliability Data:
B10d = 270000 || MTTFd = 296.8 years
Circularity Profile:
ENVEOLI121113EN
Maximum Power Consumption In W:
0.5 W 12 V DC
Electromagnetic Compatibility:
electrostatic discharge immunity test 6 kV in contact) level 3 IEC 61000-4-2 || electrostatic discharge immunity test 8 kV in air) level 3 IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80 MHz to 1 GHz) level 3 IEC 61000-4-3 || elec
Device Short Name:
RE17R
Discrete Output Type:
relay
Voltage Drift:
+/- 0.2 %/V
Immunity To Microbreaks:
20 ms
Voltage Range:
0.9...1.2 Us
Standards:
2006/95/EC || 2004/108/EC || IEC 61000-6-4 || IEC 61812-1 || IEC 61000-6-3 || IEC 61000-6-2 || IEC 61000-6-1
Connections - Terminals:
screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end |
Power Consumption In Va:
0-0.7 VA 12 V AC
Local Signalling:
LED indicator on steady: relay energised, no timing in progress || LED indicator 80 % ON and 20 % OFF flashing: timing in progress
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury Free:
Yes
Mounting Position:
any position in relation to normal vertical mounting plane
Time Delay Type:
L, Li
Net Weight:
0.07 kg
Maximum Switching Voltage:
250 V AC
Width:
17.5 mm
Vibration Resistance:
20 m/s² 10-150 Hz)IEC 60068-2-6
Impulse Duration:
100 ms with load in parallel typical || 30 ms typical
Compatibility Code:
RE17
Maximum Switching Current:
8 A AC/DC
Creepage Distance:
4 kV/3 IEC 60664-1
Rohs Exemption Information:
Yes
Supply Frequency:
50...60 Hz +/- 5 %
Product Certifications:
CSA || cULus || GL
Marking:
CE
[Uimp] Rated Impulse Withstand Voltage:
5 kV 1.2/50 µs
