Schneider Electric RE17RMMW Multifunc Timer 1C O 12 240Vac Dc

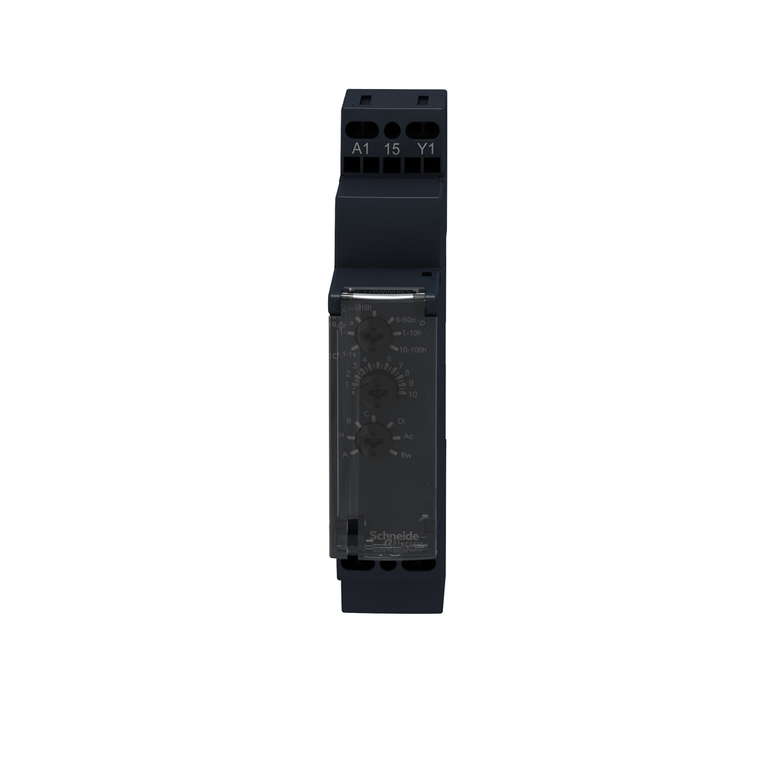

This Harmony RE17R timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 8A, is 17.5mm wide and can be supplied with 12V to 240V AC/DC. It also has 1 changeover contact SPDT (single pole double throw). It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0 0
- Tightening Torque:
- 0.6-1 N.m IEC 60947-1
- Voltage Range:
- 0.85...1.1 Us
- Repeat Accuracy:
- +/- 0.5 % IEC 61812-1
- Compatibility Code:
- RE17
- Power Consumption In Va:
- 0-3 VA 240 V AC
- Contacts Type And Composition:
- 1 C/O
- Nominal Output Current:
- 0.333333333333333
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- [Us] Rated Supply Voltage:
- 12...240 V AC/DC 50/60 Hz
- Local Signalling:
- LED indicator on steady: relay energised, no timing in progress || LED indicator 80 % ON and 20 % OFF flashing: timing in progress || LED indicator 5 % ON and 95 % OFF pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L)
- Breaking Capacity:
- 2000 VA
- Electromagnetic Compatibility:
- electrostatic discharge immunity test 6 kV in contact) level 3 IEC 61000-4-2 || electrostatic discharge immunity test 8 kV in air) level 3 IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80 MHz to 1 GHz) level 3 IEC 61000-4-3 || elec
- Width:
- 17.5 mm
- Mechanical Durability:
- 10000000 cycles
- Electrical Durability:
- 100000 cycles resistive 8 A 250 V AC
- Impulse Duration:
- 100 ms with load in parallel typical || 30 ms typical
- Depth:
- 72 mm
- Temperature Drift:
- +/- 0.05 %/°C
- Time Delay Type:
- A, Ac, At, B, Bw, C, D, Di, H, Ht
- Reset Time:
- 120 ms on de-energisation typical
- Functionality:
- multifunction
- Marking:
- CE
- Net Weight:
- 0.07 kg
- Ip Degree Of Protection:
- IP20 IEC 60529 terminal block) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)
- Maximum Delay Response:
- 100 ms
- Relative Humidity:
- 93-93 % without condensation IEC 60068-2-30
- Control Type:
- selector switch front panel
- Ambient Air Temperature For Operation:
- -20-60 °C
- Setting Accuracy Of Time Delay:
- +/- 10 % of full scale 25 °C IEC 61812-1
- Maximum Switching Current:
- 8 A AC/DC
- Operating Rate In Hz:
- 10 Hz
- Mounting Position:
- any position in relation to normal vertical mounting plane
- Input Voltage:
- 5 V
- Dielectric Strength:
- 2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
- China Rohs Regulation:
- X
- [Uimp] Rated Impulse Withstand Voltage:
- 5 kV 1.2/50 µs
- Safety Reliability Data:
- MTTFd = 296.8 years || B10d = 270000
- Shock Resistance:
- 15 gn 11 ms IEC 60068-2-27
- Supply Frequency:
- 50...60 Hz +/- 5 %
- On-Load Factor:
- 1
- Device Short Name:
- RE17R
- Standards:
- 2006/95/EC || IEC 61000-6-3 || IEC 61812-1 || IEC 61000-6-2 || IEC 61000-6-1 || 2004/108/EC || IEC 61000-6-4
- Mounting Support:
- 35 mm DIN rail conforming to IEC 60715
- Vibration Resistance:
- 20 m/s² 10-150 Hz)IEC 60068-2-6
- Creepage Distance:
- 4 kV/3 IEC 60664-1
- Environmental Disclosure:
- ENVPEP121117EN
- Voltage Drift:
- +/- 0.2 %/V
- Connections - Terminals:
- screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end |
- Ambient Air Temperature For Storage:
- -30-60 °C
- Immunity To Microbreaks:
- 20 ms
- Sustainable Offer Status:
- Green Premium product
- Minimum Switching Current:
- 10 mA 5 V DC
- Insulation Resistance:
- 100 MOhm 500 V DC IEC 60664-1
- Time Delay Type:
- power on-delay || on-delay and off-delay || interval || off-delay || symmetrical flashing
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile:
- ENVEOLI121113EN
- Product Or Component Type:
- multifunction relay
- Maximum Switching Voltage:
- 250 V AC
- Discrete Output Type:
- relay
- Height:
- 90 mm
- Mercury Free:
- Yes
- Contacts Material:
- cadmium free
- Range Of Product:
- Harmony Timer Relays
- Rohs Exemption Information:
- Yes
- Housing Material:
- self-extinguishing
- Maximum Power Consumption In W:
- 1.5 W 240 V DC
- Time Delay Range:
- 1...10 h || 0.1...1 s || 6...60 s || 10...100 h || 6...60 min || 1...10 s || 1...10 min
- Product Certifications:
- CSA || GL || cULus
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
