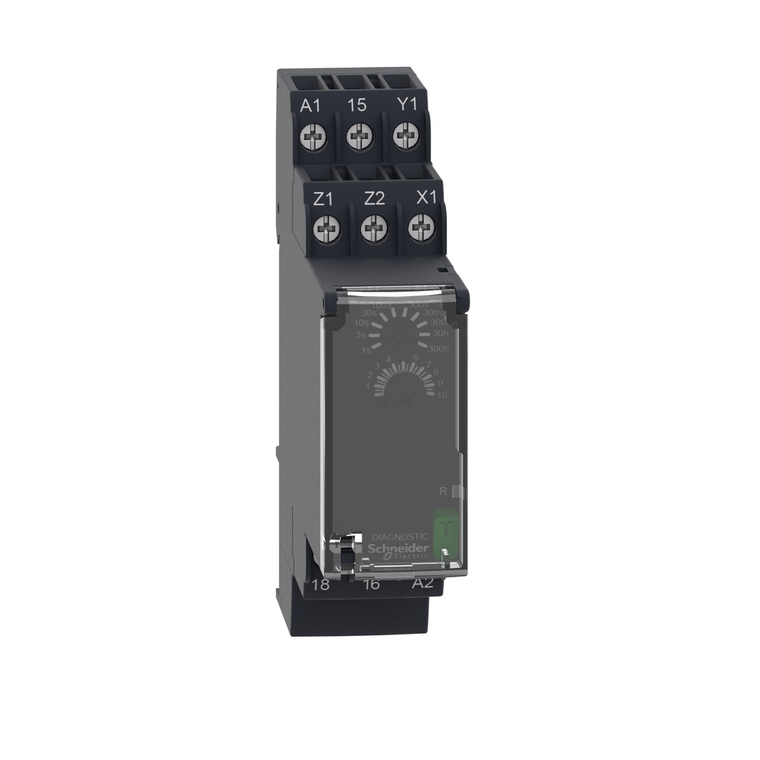

Schneider Electric RE22R1ACMR On Delay Timer

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric RE22R1ACMR On Delay Timer

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

RE22R1ACMR

UPC:

3606480792403

MPN:

Condition:

New

Overvoltage Category:

III IEC 60664-1

China Rohs Regulation:

X

Rohs Exemption Information:

Yes

Repeat Accuracy:

+/- 0.5 % IEC 61812-1

Voltage Range:

0.85...1.1 Us

Dielectric Strength:

2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1

Switching Capacity In Va:

2000 VA

Directives:

2006/95/EC - low voltage directive || 2004/108/EC - electromagnetic compatibility

Environmental Disclosure:

ENVPEP1401008EN

Mechanical Durability:

10000000 cycles

Ambient Air Temperature For Storage:

-40-70 °C

Connections - Terminals:

screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end |

Mounting Support:

35 mm DIN rail conforming to IEC 60715

Ip Degree Of Protection:

housing IP40 IEC 60529 || front face IP50 IEC 60529 || terminals IP20 IEC 60529

[Us] Rated Supply Voltage:

24...240 V AC/DC 50/60 Hz

Time Delay Range:

3...30 min || 1...10 s || 30...300 s || 10...100 s || 3...30 s || 30...300 min || 30...300 h || 0.3...3 s || 0.05...1 s || 3...30 h

Power Consumption In Va:

3-3 VA 240 V AC

Minimum Pulse Duration:

100 ms with load in parallel || 30 ms

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mounting Position:

any position

Safety Reliability Data:

B10d = 190000 || MTTFd = 205.4 years

Sustainable Offer Status:

Green Premium product

Width:

22.5 mm

Pollution Degree:

3 IEC 60664-1

Mercury Free:

Yes

Setting Accuracy Of Time Delay:

+/- 10 % of full scale 25 °C IEC 61812-1

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Supply Frequency:

50...60 Hz +/- 5 %

Electromagnetic Compatibility:

fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4 || surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5 || surge immunity test - test level: 2

Shock Resistance:

15 gn not operating 11 ms IEC 60068-2-27 || 5 gn in operation 11 ms IEC 60068-2-27

Tightening Torque:

0.6-1 N.m IEC 60947-1

Net Weight:

0.1 kg

Control Type:

rotary knob || diagnostic button || potentiometer external

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Maximum Switching Current:

0.333333333333333

Insulation Resistance:

100 MOhm 500 V DC IEC 60664-1

Circularity Profile:

ENVEOLI1401008EN

Creepage Distance:

4 kV/3 IEC 60664-1

Reset Time:

120 ms on de-energisation

Status Led:

Green LED backlight steady)dial pointer indication || Yellow LED steady)output relay energised || Yellow LED fast flashing)timing in progress and output relay de-energised || Yellow LED slow flashing)timing in progress and output relay energised

Maximum Switching Voltage:

250 V AC

Range Of Product:

Harmony Timer Relays

Electrical Durability:

100000 cycles, 8 A at 250 V, AC-1 || 100000 cycles, 2 A at 24 V, DC-1

Temperature Drift:

+/- 0.05 %/°C

Input Voltage:

<= 2.4 V

Voltage Drift:

+/- 0.2 %/V

Housing Material:

self-extinguishing

Standards:

IEC 61812-1 || UL 508

Device Short Name:

RE22

Nominal Output Current:

0.333333333333333

Product Or Component Type:

dual function relay

Immunity To Microbreaks:

10 ms

Time Delay Type:

on-delay and off-delay

Maximum Delay Response:

100 ms

Product Certifications:

CE || CCC || GL || UL || CSA || EAC || RCM

Minimum Switching Current:

10 mA 5 V DC

Vibration Resistance:

20 m/s² 10-150 Hz)IEC 60068-2-6

[Uimp] Rated Impulse Withstand Voltage:

5 kV 1.2-50 µs IEC 60664-1

Ambient Air Temperature For Operation:

-20-60 °C

Contacts Type And Composition:

1 C/O timed contact, cadmium free

Power Consumption In W:

1.5 W 240 V DC

Discrete Output Type:

relay

Relative Humidity:

95-95 % 25-55 °C

Catalog:

View

Datasheet:

View
