Schneider Electric RE22R1CMR Off Delay Timer
Schneider Electric
$59.65
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

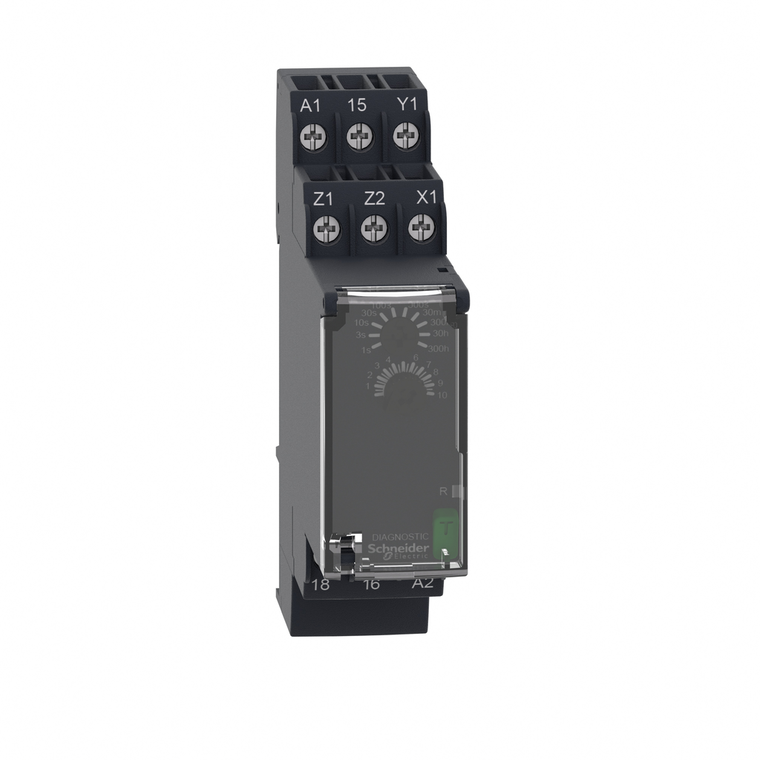

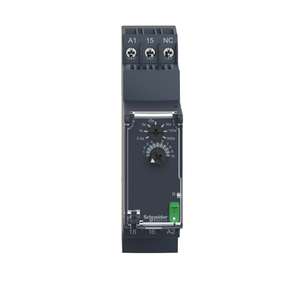

Schneider Electric RE22R1CMR Off Delay Timer
This Harmony RE22 modular dual function timer can be set between 1 seconds and 300 hours, has an output rating of 8 amperes and it is 22.5 millimeters wide. This modular dual function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. Dual function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
- Mounting Support:
- 35 mm DIN rail conforming to IEC 60715
- Mechanical Durability:
- 10000000 cycles
- Overvoltage Category:
- III IEC 60664-1
- Electromagnetic Compatibility:
- fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4 || surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5 || surge immunity test - test level: 2
- Control Type:
- rotary knob || diagnostic button || potentiometer external
- Circularity Profile:
- ENVEOLI1401008EN
- Power Consumption In W:
- 1.5 W 240 V DC
- Relative Humidity:
- 95-95 % 25-55 °C
- Safety Reliability Data:
- MTTFd = 205.4 years || B10d = 190000
- Mounting Position:
- any position
- Dielectric Strength:
- 2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1
- Vibration Resistance:
- 20 m/s² 10-150 Hz)IEC 60068-2-6
- Time Delay Range:
- 10...100 s || 3...30 s || 0.05...1 s || 30...300 s || 30...300 h || 30...300 min || 3...30 min || 3...30 h || 0.3...3 s || 1...10 s
- Discrete Output Type:
- relay
- Ambient Air Temperature For Operation:
- -20-60 °C
- Minimum Switching Current:
- 10 mA 5 V DC
- Tightening Torque:
- 0.6-1 N.m IEC 60947-1
- Insulation Resistance:
- 100 MOhm 500 V DC IEC 60664-1
- Environmental Disclosure:
- ENVPEP1401008EN
- Ambient Air Temperature For Storage:
- -40-70 °C
- Contacts Type And Composition:
- 1 C/O timed contact, cadmium free
- China Rohs Regulation:
- X
- Ip Degree Of Protection:
- housing IP40 IEC 60529 || front face IP50 IEC 60529 || terminals IP20 IEC 60529
- Creepage Distance:
- 4 kV/3 IEC 60664-1
- Standards:
- UL 508 || IEC 61812-1
- Pollution Degree:
- 3 IEC 60664-1
- Range Of Product:
- Harmony Timer Relays
- Temperature Drift:
- +/- 0.05 %/°C
- Switching Capacity In Va:
- 2000 VA
- Sustainable Offer Status:
- Green Premium product
- Time Delay Type:
- off-delay
- Directives:
- 2004/108/EC - electromagnetic compatibility || 2006/95/EC - low voltage directive
- [Uimp] Rated Impulse Withstand Voltage:
- 5 kV 1.2-50 µs IEC 60664-1
- Setting Accuracy Of Time Delay:
- +/- 10 % of full scale 25 °C IEC 61812-1
- Electrical Durability:
- 100000 cycles, 8 A at 250 V, AC-1 || 100000 cycles, 2 A at 24 V, DC-1
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Status Led:
- Green LED backlight steady)dial pointer indication || Yellow LED steady)output relay energised || Yellow LED fast flashing)timing in progress and output relay de-energised || Yellow LED slow flashing)timing in progress and output relay energised
- Connections - Terminals:
- screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end |
- Housing Material:
- self-extinguishing
- Supply Frequency:
- 50...60 Hz +/- 5 %
- Minimum Pulse Duration:
- 100 ms with load in parallel || 30 ms
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Repeat Accuracy:
- +/- 0.5 % IEC 61812-1
- Input Voltage:
- <= 2.4 V
- Power Consumption In Va:
- 3-3 VA 240 V AC
- Net Weight:
- 0.1 kg
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- [Us] Rated Supply Voltage:
- 24...240 V AC/DC 50/60 Hz
- Immunity To Microbreaks:
- 10 ms
- Voltage Drift:
- +/- 0.2 %/V
- Product Certifications:
- UL || CE || CCC || CSA || GL || RCM || EAC
- Maximum Switching Current:
- 0.333333333333333
- Width:
- 22.5 mm
- Nominal Output Current:
- 0.333333333333333
- Product Or Component Type:
- dual function relay
- Voltage Range:
- 0.85...1.1 Us
- Shock Resistance:
- 15 gn not operating 11 ms IEC 60068-2-27 || 5 gn in operation 11 ms IEC 60068-2-27
- Reset Time:
- 120 ms on de-energisation
- Maximum Delay Response:
- 100 ms
- Maximum Switching Voltage:
- 250 V AC
- Device Short Name:
- RE22
- Rohs Exemption Information:
- Yes
- Mercury Free:
- Yes
- Catalog:
- View
- Datasheet:
- View
