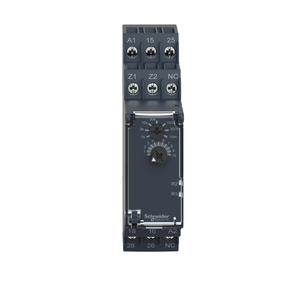

Schneider Electric RE22R1MKMR Off Delay Timer Relay
Schneider Electric
$83.09
This Harmony RE22 modular dual function timer can be set between 1 seconds and 300 hours, has an output rating of 8 amperes and it is 22.5 millimeters wide. This modular dual function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. Dual function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
- Temperature Drift:
- +/- 0.05 %/°C
- Circularity Profile:
- ENVEOLI1401008EN
- Voltage Range:
- 0.85...1.1 Us
- Mounting Position:
- any position
- Device Short Name:
- RE22
- Product Certifications:
- GL || UL || CSA || RCM || CCC || CE || EAC
- Ip Degree Of Protection:
- housing IP40 IEC 60529 || front face IP50 IEC 60529 || terminals IP20 IEC 60529
- Tightening Torque:
- 0.6-1 N.m IEC 60947-1
- Connections - Terminals:
- screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end |
- Range Of Product:
- Harmony Timer Relays
- Width:
- 22.5 mm
- Supply Frequency:
- 50...60 Hz +/- 5 %
- Power Consumption In W:
- 2 W 240 V DC
- Environmental Disclosure:
- ENVPEP1401008EN
- Immunity To Microbreaks:
- 10 ms
- Input Voltage:
- <= 2.4 V
- Mechanical Durability:
- 10000000 cycles
- Status Led:
- Green LED backlight steady)dial pointer indication || Yellow LED steady)output relay energised || Yellow LED steady)power ON
- Product Or Component Type:
- dual function relay
- Contacts Type And Composition:
- 1 C/O timed contact, cadmium free
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ambient Air Temperature For Operation:
- -20-60 °C
- [Uimp] Rated Impulse Withstand Voltage:
- 5 kV 1.2-50 µs IEC 60664-1
- Mounting Support:
- 35 mm DIN rail conforming to IEC 60715
- Insulation Resistance:
- 100 MOhm 500 V DC IEC 60664-1
- Time Delay Range:
- 0.3...3 s || 0.05...0.5 s || 3...30 s || 0.1...1 s || 30...300 s || 10...100 s || 1...10 s
- Housing Material:
- self-extinguishing
- Voltage Drift:
- +/- 0.2 %/V
- Power Consumption In Va:
- 3-3 VA 240 V AC
- Electrical Durability:
- 100000 cycles, 2 A at 24 V, DC-1 || 100000 cycles, 5 A at 250 V, AC-1
- Creepage Distance:
- 4 kV/3 IEC 60664-1
- Nominal Output Current:
- 0.208333333333333
- Maximum Switching Current:
- 0.208333333333333
- Mercury Free:
- Yes
- Maximum Switching Voltage:
- 250 V AC
- Vibration Resistance:
- 20 m/s² 10-150 Hz)IEC 60068-2-6
- Repeat Accuracy:
- +/- 0.5 % IEC 61812-1
- Setting Accuracy Of Time Delay:
- +/- 10 % of full scale 25 °C IEC 61812-1
- Reset Time:
- 50 ms on de-energisation
- Rohs Exemption Information:
- Yes
- Maximum Delay Response:
- 100 ms
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Overvoltage Category:
- III IEC 60664-1
- Time Delay Type:
- pulse-on de-energization || delay on de-energization
- Ambient Air Temperature For Storage:
- -40-70 °C
- Standards:
- IEC 61812-1 || UL 508
- China Rohs Regulation:
- X
- Directives:
- 2006/95/EC - low voltage directive || 2004/108/EC - electromagnetic compatibility
- Relative Humidity:
- 95-95 % 25-55 °C
- Control Type:
- rotary knob
- Switching Capacity In Va:
- 1250 VA
- Sustainable Offer Status:
- Green Premium product
- Shock Resistance:
- 15 gn not operating 11 ms IEC 60068-2-27 || 5 gn in operation 11 ms IEC 60068-2-27
- Dielectric Strength:
- 2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1
- Electromagnetic Compatibility:
- fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4 || surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5 || surge immunity test - test level: 2
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Discrete Output Type:
- relay
- Pollution Degree:
- 3 IEC 60664-1
- Minimum Switching Current:
- 10 mA 5 V DC
- Safety Reliability Data:
- B10d = 180000 || MTTFd = 194 years
- [Us] Rated Supply Voltage:
- 24...240 V AC/DC 50/60 Hz
- Net Weight:
- 0.1 kg
- Catalog:
- View
- Datasheet:
- View
