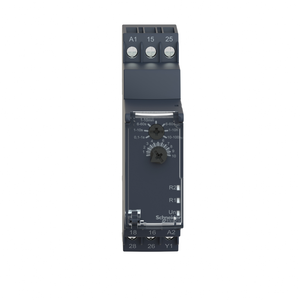

Schneider Electric RE22R2AMR On Delay Timer

(No reviews yet) Write a Review

Write a Review

Schneider Electric RE22R2AMR On Delay Timer

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

RE22R2AMR

UPC:

3606480792472

MPN:

Condition:

New

Ip Degree Of Protection:

housing IP40 IEC 60529 || terminals IP20 IEC 60529 || front panel IP50 IEC 60529

Mounting Position:

any position

Voltage Drift:

+/- 0.2 %/V

Ambient Air Temperature For Operation:

-20-60 °C

Insulation Resistance:

100 MOhm 500 V DC IEC 60664-1

Time Delay Type:

power on-delay

Environmental Disclosure:

ENVPEP1401008EN

Electromagnetic Compatibility:

fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4 || surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5 || surge immunity test - test level: 2

[Us] Rated Supply Voltage:

24...240 V AC/DC 50/60 Hz

Ambient Air Temperature For Storage:

-40-70 °C

Shock Resistance:

15 gn not operating 11 ms IEC 60068-2-27 || 5 gn in operation 11 ms IEC 60068-2-27

Dielectric Strength:

2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1

Temperature Drift:

+/- 0.05 %/°C

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Certifications:

CE || CCC || GL || UL || RCM || EAC || CSA

[Uimp] Rated Impulse Withstand Voltage:

5 kV 1.2-50 µs IEC 60664-1

Standards:

UL 508 || IEC 61812-1

Minimum Switching Current:

10 mA 5 V DC

Setting Accuracy Of Time Delay:

+/- 10 % of full scale 25 °C IEC 61812-1

Circularity Profile:

ENVEOLI1401008EN

Net Weight:

0.105 kg

Overvoltage Category:

III IEC 60664-1

Maximum Switching Current:

0.333333333333333

Tightening Torque:

0.6-1 N.m IEC 60947-1

Connections - Terminals:

screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end |

Repeat Accuracy:

+/- 0.5 % IEC 61812-1

Immunity To Microbreaks:

10 ms

Power Consumption In W:

1.5 W 240 V DC

Input Voltage:

<= 2.4 V

Discrete Output Type:

relay

Creepage Distance:

4 kV/3 IEC 60664-1

Supply Frequency:

50...60 Hz +/- 5 %

Reset Time:

120 ms on de-energisation

Mounting Support:

35 mm DIN rail conforming to IEC 60715

Mercury Free:

Yes

Pollution Degree:

3 IEC 60664-1

Status Led:

Green LED backlight steady)dial pointer indication || Yellow LED steady)output relay energised || Yellow LED fast flashing)timing in progress and output relay de-energised || Yellow LED slow flashing)timing in progress and output relay energised

Directives:

2004/108/EC - electromagnetic compatibility || 2006/95/EC - low voltage directive

Rohs Exemption Information:

Yes

Contacts Type And Composition:

1 C/O timed contact, cadmium free || 1 C/O timed or instantaneous contact, cadmium free

Maximum Switching Voltage:

250 V AC

Nominal Output Current:

0.333333333333333

Mechanical Durability:

10000000 cycles

Range Of Product:

Harmony Timer Relays

Relative Humidity:

95-95 % 25-55 °C

Minimum Pulse Duration:

100 ms with load in parallel || 30 ms

Control Type:

rotary knob || diagnostic button || potentiometer external

Safety Reliability Data:

B10d = 200000 || MTTFd = 216.8 years

Housing Material:

self-extinguishing

Time Delay Range:

0.05...1 s || 0.3...3 s || 3...30 h || 30...300 min || 10...100 s || 30...300 s || 3...30 s || 30...300 h || 1...10 s || 3...30 min

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Power Consumption In Va:

3-3 VA 240 V AC

Device Short Name:

RE22

Sustainable Offer Status:

Green Premium product

Product Or Component Type:

dual function relay

Vibration Resistance:

20 m/s² 10-150 Hz)IEC 60068-2-6

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

China Rohs Regulation:

X

Width:

22.5 mm

Electrical Durability:

100000 cycles, 8 A at 250 V, AC-1 || 100000 cycles, 2 A at 24 V, DC-1

Switching Capacity In Va:

2000 VA

Maximum Delay Response:

100 ms

Voltage Range:

0.85...1.1 Us
