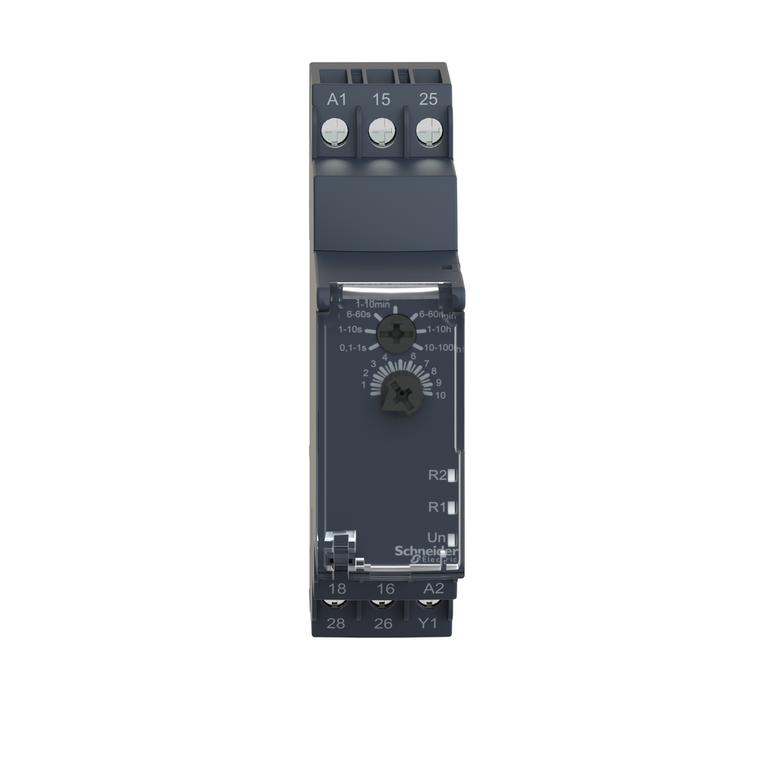

Schneider Electric RE22R2AMU On Delay Timer
Schneider Electric
$73.25
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony RE22 modular single function timer can be set between 0.1 seconds and 100 hours. It provides function A and At and it is mountable on DIN rail. This modular single function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Selectable timing range offers a one stop solution for your power management system. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
- Time Delay Range:
- 1...10 min || 10...100 h || 1...10 s || 0.1...1 s || 6...60 s || 6...60 min || 1...10 h
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Us] Rated Supply Voltage:
- 24...240 V AC || 24 V DC
- Maximum Delay Response:
- 100 ms
- Power Consumption In Va:
- 50-50 VA 240 V AC
- Vibration Resistance:
- 20 m/s² 10-150 Hz)IEC 60068-2-6
- Maximum Switching Current:
- 8 mA
- Electrical Durability:
- 100000 cycles for resistive load, 8 A at 250 V, AC
- Relative Humidity:
- 93-93 %, without condensation IEC 60068-2-30
- Shock Resistance:
- 15 gn 11 ms IEC 60068-2-27
- Rohs Exemption Information:
- Yes
- Supply Frequency:
- 50...60 Hz +/- 5 %
- Standards:
- IEC 61000-6-3 || IEC 61000-6-4 || IEC 61000-6-2 || IEC 61812-1 || IEC 61000-6-1
- Environmental Disclosure:
- ENVPEP1401008EN
- Mounting Support:
- 35 mm DIN rail conforming to IEC 60715
- Mounting Position:
- any position in relation to normal vertical mounting plane
- Directives:
- 2004/108/EC - electromagnetic compatibility || 2006/95/EC - low voltage directive
- Voltage Range:
- 0.85...1.1 Us
- Net Weight:
- 0.09 kg
- Safety Reliability Data:
- MTTFd = 182.6 years || B10d = 170000
- Immunity To Microbreaks:
- 10 ms
- Product Certifications:
- cULus || CE || EAC || CSA || RCM || CCC || GL
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free:
- Yes
- Ambient Air Temperature For Operation:
- -20-60 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Device Short Name:
- RE22
- China Rohs Regulation:
- X
- Electromagnetic Compatibility:
- electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 || fast transients immuni
- Status Led:
- Green LED flashing)timing in progress || Green LED steady)power ON || Yellow LEDrelay energised
- Reset Time:
- 120 ms on de-energisation
- Maximum Switching Voltage:
- 250 V
- Connections - Terminals:
- screw terminals, 2 x 1.5 mm² with cable end || screw terminals, 2 x 2.5 mm² without cable end
- Minimum Pulse Duration:
- 30 ms || 100 ms under load
- Control Type:
- rotary knob front panel
- Circularity Profile:
- ENVEOLI1401008EN
- Power Consumption In W:
- 0.7 W 24 V DC
- Sustainable Offer Status:
- Green Premium product
- Tightening Torque:
- 0.6-1 N.m IEC 60947-1
- Dielectric Strength:
- 2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
- [Uimp] Rated Impulse Withstand Voltage:
- 5 kV 1.2-50 µs IEC 60664-1 || 5 kV IEC 61812-1
- Temperature Drift:
- +/- 0.05 %/°C
- Range Of Product:
- Harmony Timer Relays
- Voltage Drift:
- +/- 0.2 %/V
- Minimum Switching Current:
- 10 mA 5 V
- Time Delay Type:
- power on-delay
- Setting Accuracy Of Time Delay:
- +/- 10 % of full scale 25 °C IEC 61812-1
- Discrete Output Type:
- relay
- Mechanical Durability:
- 10000000 cycles
- Width:
- 22.5 mm
- Product Or Component Type:
- dual function relay
- Housing Material:
- self-extinguishing
- Breaking Capacity:
- 2000 VA
- Ambient Air Temperature For Storage:
- -30-60 °C
- Contacts Type And Composition:
- 2 C/O timed contact
- Insulation Resistance:
- 100 MOhm 500 V DC IEC 60664-1
- Repeat Accuracy:
- +/- 0.5 % IEC 61812-1
- Nominal Output Current:
- 0.333333333333333
- Ip Degree Of Protection:
- housing IP40 IEC 60529 || terminal block IP20 IEC 60529 || front face IP40 IEC 60529
